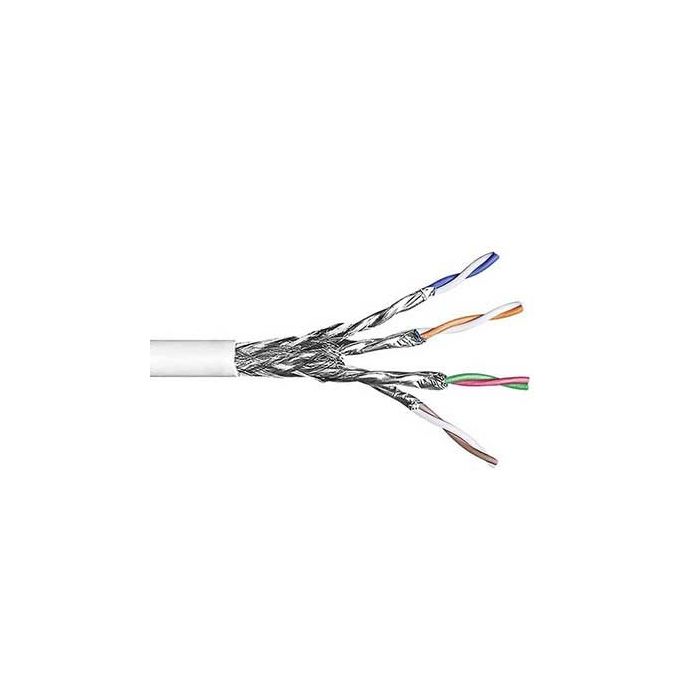

Product Type Features
- Performance Category = Cat 7
- Series = Standard
- Cable Style = Simplex
- Wire/Cable Type = Twisted Pair
- Shield Type = Individually Foiled Pairs Plus Overall Copper Braid
- Shielded = Yes
Electrical Specifications
- Characteristic Impedance: 100 ohm
- Characteristic Impedance Tolerance: ±15 ohm
- Coupling Attenuation: Type I
- dc Resistance, maximum: 15 ohms/100 m | 4.572 ohms/100 ft
- Delay Skew, maximum: 7 ns
- Nominal Velocity of Propagation (NVP): 80 %
- Operating Voltage, maximum: 80 V
- Segregation Class: d
Termination Features
- Wire/Cable Size (AWG) = 23
- Cable Outer Diameter (mm [in]) = 7.30 [0.287]
- Length (M [ft]) = 1000.00 [1640.41]
- Jacket Color = White
- Number of Twisted Pairs = 4
- Cable Configuration = S/FTP (Screened/Foiled Twisted Pair)
Environmental Specifications
- Installation temperature: 0 °C to +50 °C (+32 °F to +122 °F)
- Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
Industry Standards
- Flammability Rating Type = LSZH (Low Smoke Zero Halogen)
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
- Lead Free Solder Processes = Not relevant for lead free process
- RoHS/ELV Compliance History = Always was RoHS compliant
Packaging Features
- Packaging Method = Reel
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Цвят | Бял |
| Екраниран | ДА |
| Екранировка | S/FTP |
| Категория кабел | кат. 7 |
| AWG-size | 23 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
