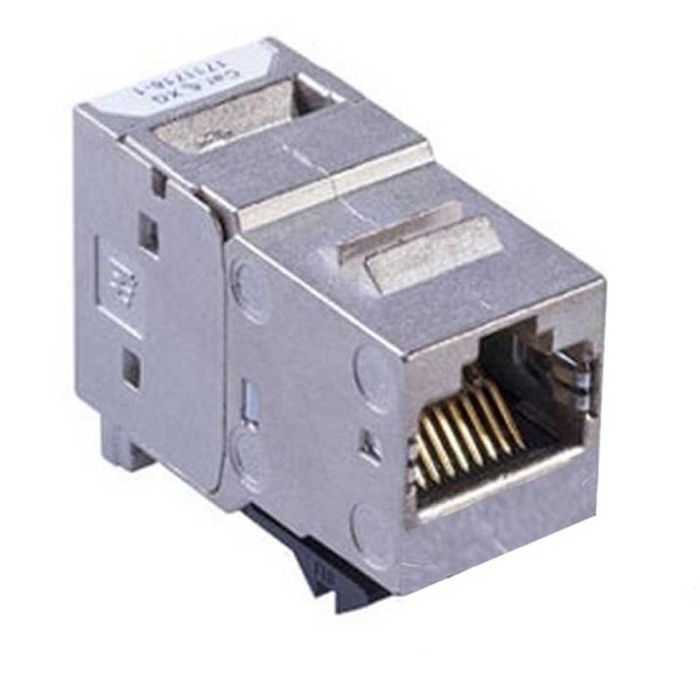

AMP-TWIST категория 6AS SL жак - инсърт без капаче против прах, XGa

AMP-TWIST 6AS SL Jack - Class EA / Category 6A as per ISO/IEC 11801 Ed.2 Amd.2 - Termination time less than 1 Minute (using Tyco Electronics patented AWC technique) - Patented shield clamp with integrated strain relief - Available with or without dust cover - Optional colored dust covers available

General Specifications

• ANSI/TIA Category: 6A
• Cable Type: Shielded
• Color: Silver
• Conductor Type: Solid | Stranded
• Integrated Dust Cover Type: None
• Outlet Type: Standard
• Termination Tool: SL Termination tool
• Termination Type: IDC
• Transmission Standards: ANSI/TIA-568-C.2 | IEEE 802.3an | IEEE 802.3at | ISO/IEC 11801 Class EA
• Wiring: T568A | T568B

Dimensions

• Panel Cutout, recommended: 14.78 x 20.32 mm (0.58 x 0.80 in)
• Panel Thickness, recommended: 1.6 mm | 0.063 in
• Height: 22.5 mm | 0.886 in
• Width: 14.48 mm | 0.57 in
• Depth: 31.82 mm | 1.253 in
• Compatible Cable Diameter, maximum: 9 mm | 0.354 in
• Contact Plating Thickness: 1.27 µm
• Compatible Conductor Gauge, solid: 24–22 AWG
• Compatible Conductor Gauge, stranded: 24 AWG

Electrical Specifications

• Current Rating, maximum: 0.75 A
• Safety Voltage Rating: 150 Vac

Material Specifications

• Contact Base Material: Beryllium copper
• Contact Plating Material: Gold
• Material Type: Zinc alloy
• Mechanical Specifications
• Plug Insertion Life, minimum: 750 times
• Plug Retention Force, minimum: 30 N | 6.744 lbf

Environmental Specifications

• Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
• Flammability Rating: UL 94 V-0

Packaging and Weights

• Packaging quantity: 12
• Packaging Type: Tray in box

Regulatory Compliance/Certifications

• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
• REACH-SVHC: Compliant
