Product Type Features

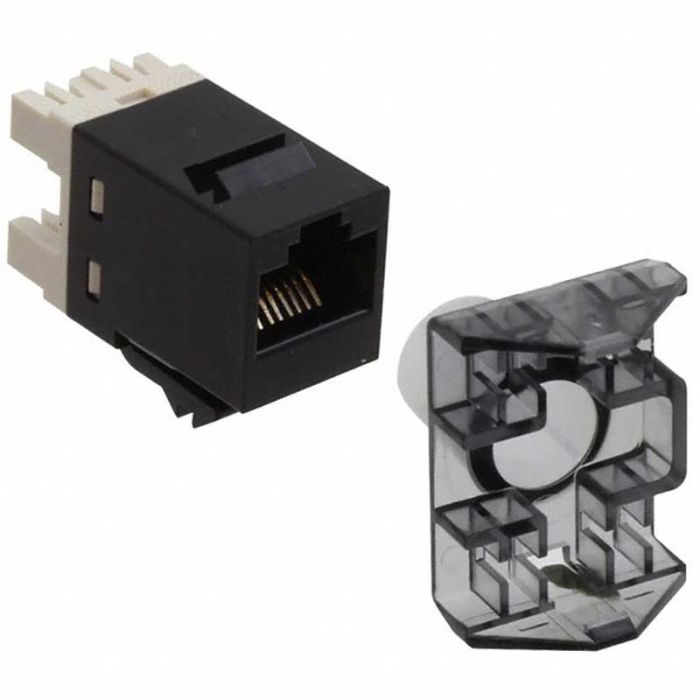

- Product Type = Connector - Modular
- Jack Type = RJ45, UTP
- Performance Category = Cat 6
- Termination Style = SL Termination Tool
- Series = SL Series
- Wiring Pattern = Universal
- Keyed = No
- Shielded = No
- Conductor Outer Diameter (mm [in]) = 1.45 [0.057]
- Mount Type = Panel Mount, SL Series Faceplate
- Wire Range (Solid) (mm [AWG]) = 0.65 [22], 0.51 [24]
- Wire Range (Stranded) (mm² [AWG]) = 0.14² [26], 0.20² [24]
- 110 Block Material = Polycarbonate
- Contact Base Material = Beryllium Copper
- Contact Plating, Mating Area, Material = Gold
- Contact Plating, Mating Area, Thickness (µm [μin]) = 1.27 [50]
- Housing Color = Black
- Housing Material = Polycarbonate
- UL Flammability Rating = UL 94V-0
Configuration Features
- Dust Cover = Without
- Number of Positions = 8
Industry Standards
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
- Lead Free Solder Processes = Not relevant for lead free process
- RoHS/ELV Compliance History = Converted to comply with RoHS directive
Mechanical Specifications
- Plug Insertion Life, minimum: 750 times
- Plug Retention Force, minimum: 50 N | 11.240 lbf
Environmental Specifications
- Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
- Storage Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
Packaging Features
- Packaging Method = Poly Bag
- Packaging Quantity = 1
Product Availability
- Region = Asia, EMEA, North America, Latin America, Australia/New Zealand
Other
- Brand = TE Connectivity
- Comment = With strain relief.
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Цвят | Черен |
| Екраниран | НЕ |
| Категория кабел | кат. 6 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
