Product Type Features

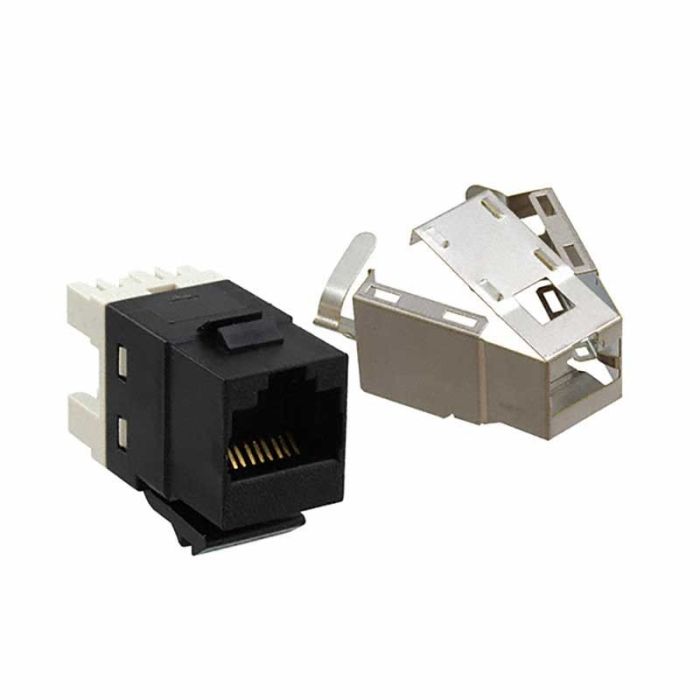

- Product Type = Connector - Modular
- Jack Type = RJ45
- Performance Category = Cat 6
- Termination Style = SL Termination Tool
- Series = SL Series
- Wiring Pattern = Universal
- Keyed = No
- Shield Material = Copper Zinc Alloy
- Cover Material = Polycarbonate
- Shielded = Yes
- Conductor Outer Diameter (mm [in]) = 1.45 [0.057]
- NETCONNECT Select System = No
- Shield Plating = Bright Nickel
- Mount Type = Panel Mount
- Wire Range (Solid) (mm [AWG]) = 22-24
- Wire Range (Stranded) (mm² [AWG]) = 24-26
- 110 Block Material = Polycarbonate
- Contact Base Material = Beryllium Copper
- Contact Plating, Mating Area, Material = Gold
- Contact Plating, Mating Area, Thickness (µm [μin]) = 1.27 [50]
- Housing Color = Black
- Housing Material = Polycarbonate
- UL Flammability Rating = UL 94V-0
Configuration Features
- Dust Cover = Without
- Number of Positions = 8
Industry Standards
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
- Lead Free Solder Processes = Not relevant for lead free process
- RoHS/ELV Compliance History = Converted to comply with RoHS directive
Packaging Features
- Packaging Method = Poly Bag
- Packaging Quantity = 1
Product Availability
- Region = Asia, EMEA, North America, Latin America
Other
- Brand = TE Connectivity
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
