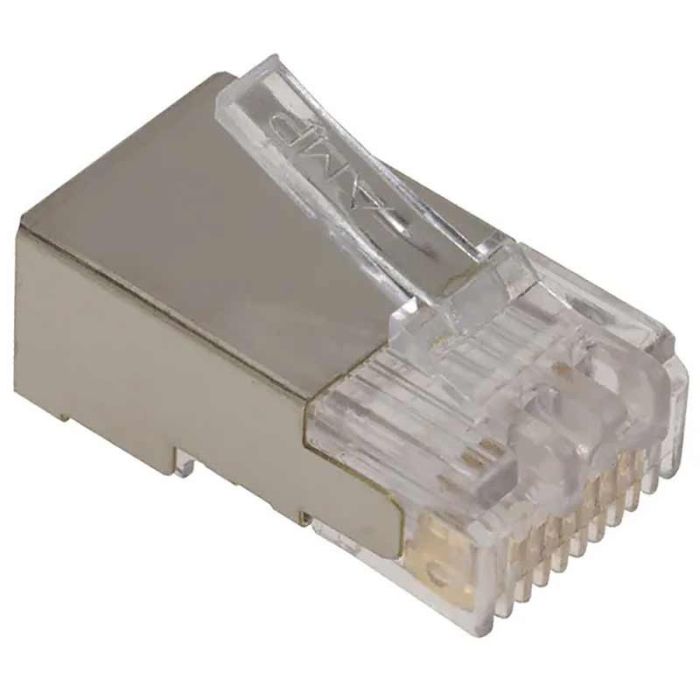

MODULAR PLUG ASSEMBLY, 8 POSITION, SHIELDED

Product Classification

• Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
• Portfolio: NETCONNECT
• Product Type: Modular plug

General Specifications

• Category: 5e
• Cable Type: Round, shielded
• Conductor Type: Stranded
• Interface: RJ45
• Positions/Loaded Contacts: 8/8
• Termination Type: IDC

Dimensions

• Compatible Cable Diameter, maximum: 5.08 mm | 0.2 in
• Compatible Cable Diameter, minimum: 4.83 mm | 0.19 in
• Compatible Insulated Conductor Diameter, maximum: 0.99 mm | 0.039 in
• Compatible Insulated Conductor Diameter, minimum: 0.74 mm | 0.029 in
• Compatible Conductor Gauge, stranded: 28–24 AWG

Electrical Specifications

• Insulation Resistance, minimum: 500 mOhm

Material Specifications

• Contact Base Material: Phosphor bronze
• Material Type: Glass filled polycarbonate
• Plug Shield Base Material: Copper alloy
• Plug Shield Plating Material: Tin

Mechanical Specifications

• Plug Insertion Life, minimum: 750 times

Environmental Specifications

• Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
• Flammability Rating: UL 94 V-2

Packaging and Weights

• Packaging quantity: 500
• Packaging Type: Bag | Box | Carton

Regulatory Compliance/Certifications

• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
