Product Classification
- Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America | North America
- Portfolio: CommScope

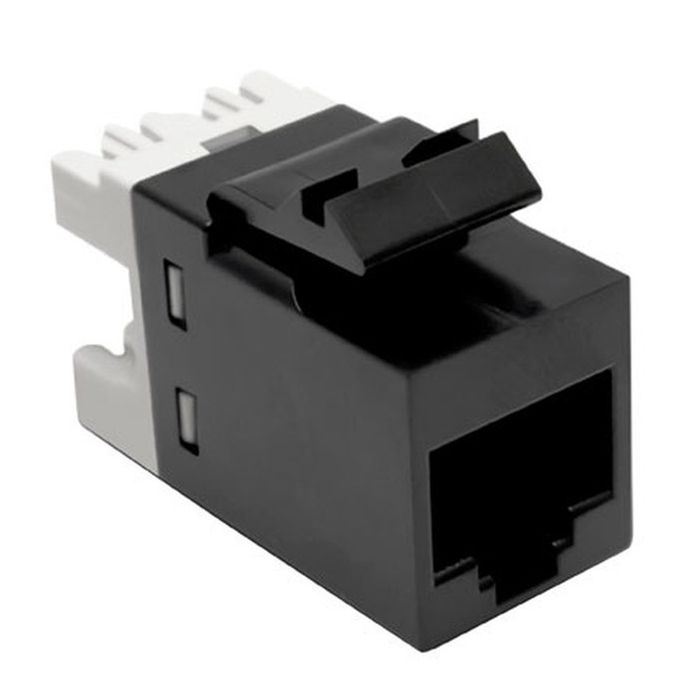

- Product Type: Modular jack
- Product Series: SL Series
General Specifications
- Category: 5e
- Cable Type: Unshielded
- Color: Black
- Conductor Type: Solid | Stranded
- Integrated Dust Cover Type: None
- Mounting: SL Series faceplates and panels
- Mounting Note: Color matches with SL-style Black Faceplates and Surface Mount Boxes
- Outlet Type: Standard
- Termination Punchdown, minimum: 200 times
- Termination Tool: SL Termination tool
- Termination Type: IDC
- Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
- Wiring: T568A | T568B
Dimensions
- Panel Cutout, recommended: 14.78 x 20.07 mm (0.58 x 0.79 in)
- Panel Thickness, recommended: 1.6 mm | 0.063 in
- Height: 16.26 mm | 0.64 in
- Width: 14.48 mm | 0.57 in
- Depth: 30.48 mm | 1.2 in
- Compatible Insulated Conductor Diameter, maximum: 1.45 mm | 0.057 in
- Contact Plating Thickness: 1.27 µm
- Compatible Conductor Gauge, solid: 24–22 AWG
- Compatible Conductor Gauge, stranded: 26–24 AWG
Electrical Specifications
- Remote Powering: Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
- Safety Voltage Rating: 150 Vac
Material Specifications
- Contact Base Material: Beryllium copper
- Contact Plating Material: Gold
- Material Type: Polycarbonate
Mechanical Specifications
- Plug Insertion Life, minimum: 750 times
- Plug Retention Force, minimum: 89 N | 20.008 lbf
Environmental Specifications
- Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
- Flammability Rating: UL 94 V-0
- Safety Standard: CSA | cUL
Packaging and Weights
- Included: Strain relief cap
- Packaging quantity: 1
- Packaging Type: Bag
Regulatory Compliance/Certifications
- ROHS: Compliant
- CHINA-ROHS: Below maximum concentration value
- REACH-SVHC: Compliant
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Цвят | Черен |
| Екраниран | НЕ |
| Категория кабел | кат. 5e |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
