Mechanical Attachment:
- Installation Tensile Strength (Newton [lbf]) = 2000.0 [450]
- Max Attenuation @ 1310nm (dB/km) = 0.45
- Max Attenuation @ 1550nm (dB/km) = 0.35
- Fiber Type (Micron) = OS2 9/125
- Length (M [ft]) = 1000.00 [3280.80]
- Installation Bend Radius (mm [in]) = 230.00 [9.000]
- Armoring = None

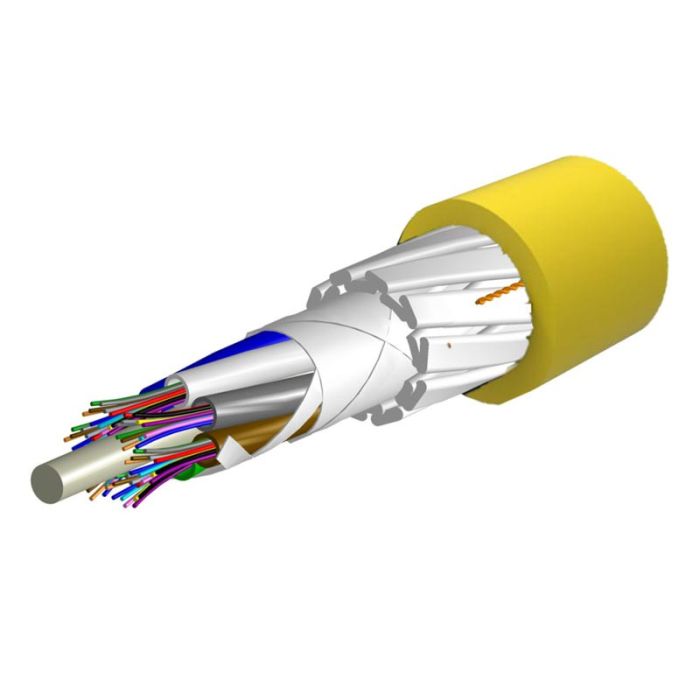

- Cable Construction = 2 x 12 + 2 Fillers
- Cable Color = Yellow
- Nominal Outside Diameter (mm [in]) = 11.50 [0.4527]
- Long Term Bend Radius (mm [in]) = 170 [6.69]
- Nominal Weight (kg/km) = 126
- Long Term Tensile Strength (Newton [lbf]) = 1200.0 [270]
- Number of Fibers = 24
- Cable Buffering = Loose Tube - Gel
Industry Standards:
- Flammability Rating Type = ULSZH (Universal Low Smoke Zero Halogen)
- RoHS/ELV Compliance = RoHS compliant, ELV compliant
- Lead Free Solder Processes = Not relevant for lead free process
- RoHS/ELV Compliance History = Converted to comply with RoHS directive
Environmental:
- Operating Temperature (°C [°F]) = -25 – +70 [-13 – +158]
Operation/Application:
- Application = Indoor, Indoor/Outdoor, Outdoor
Product Availability:
- Region = EMEA, Australia/New Zealand
Other:
- Brand = TE Connectivity
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
