- Available in cat. 5E, T568A/B wiring, meet or exceed TIA/EIA Cat. 5e requirements
- Shielding protects against EMI/RFI interference
- Housing: high temperature thermoplastic
- Compact jack design, 8 positions and 8 conductors
- Contact: phosphor bronze, phosphor bronze with 6 to 50μ" gold plate
- Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
- Easy to be terminated, low attenuation loss and high return loss
- High reliability and superior performance
- Available in different colors

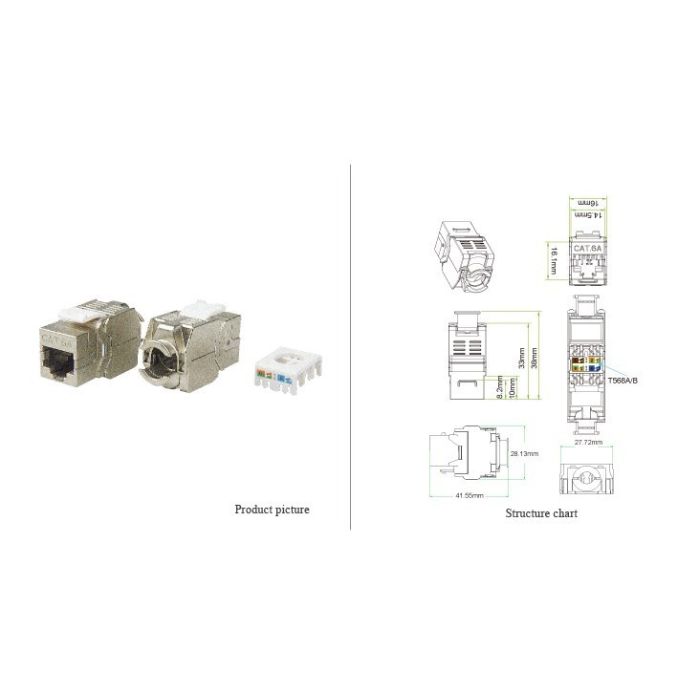

CONSTRUCTION
| Description | Parameter |
| Contact resistance(max) | 100mΩ |
| Insulation resistance（min） | 500MΩ |
| Return loss（dB） | 5.8dB |
| Next（dB） | 4.7dB |
| Ps next(dB) | 5.5dB |
| Тегло, кг | 0.027000 |
|---|---|
| Марка | Linkbasic |
| Country of Manufacture | Китай |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
