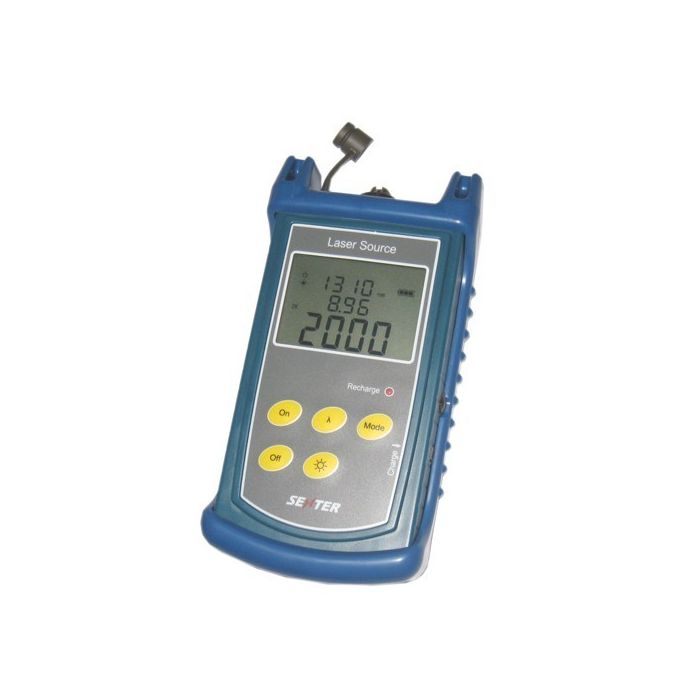

Key Features
- Continuous light, modulated light output
- Output double wavelength through one port
- High stabilization
- Auto 10 minutes shut off function
- Support FC, SC, ST adapter
- Big display LCD
- LED backlight switch on/off
- Auto close back light in 8 seconds without operation
- Li-ion rechargeable battery or 9V AAA battery
- Battery voltage display
- Low voltage checking and shut off to save energy
- Identify the wavelength automatically (Please notice: use the same Brand optical power meter)
Technical Specifications
|
Emitter type |
Fabry_Perot LD/DFB-LD |
|
Output wavelength switch (nm) |
Wavelength: ST815 Wavelength: 1310±20nm, 1550±20nm ST815B Wavelength: 1310±20nm, 1550±20nm, 1490±20nm ST815C Wavelength: 1310±20nm, 1550±20nm, 850±20nm, 1300±20nm ST815D Wavelength: 1310±20nm, 1550±20nm, 1625±20nm ST815E Wavelength: 1310±20nm, 1550±20nm, 650±20nm
|
|
Spectral width (nm) |
≤5 |
|
Output optical power (dBm) |
≥-7 (standard) ≥0dBm（customized） |
|
Optical Output Mode |
CW/270Hz, 1kHz, 2kHz, 330Hz |
|
Optical Interface |
FC, SC, ST |
|
Power Stability (dB) (Short time) |
≤±0.05/15min |
|
Power Stability (dB) (Long time) |
≤±0.1/5h |
|
General specifications |
|
|
Working temperature (℃) |
0--40 |
|
Storage temperature (℃) |
-10----70 |
|
Weight (kg) |
0.22 |
|
Dimension (mm) |
160×76×28 |
|
Battery |
Rechargeable Li-ion battery or Dry AAA battery |
|
Battery working duration (h) |
About 15 hours |
|
Low voltage warning |
≤7.2V |
| Тегло, кг | 0.250000 |
|---|---|
| Марка | MegaF |
| Цвят | Син |
| Country of Manufacture | Китай |
| Вид конектор - ОПТИЧЕН | FC, SC, ST |
| Дължина на вълната, nm (дублиран) | 1550, 1310 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
