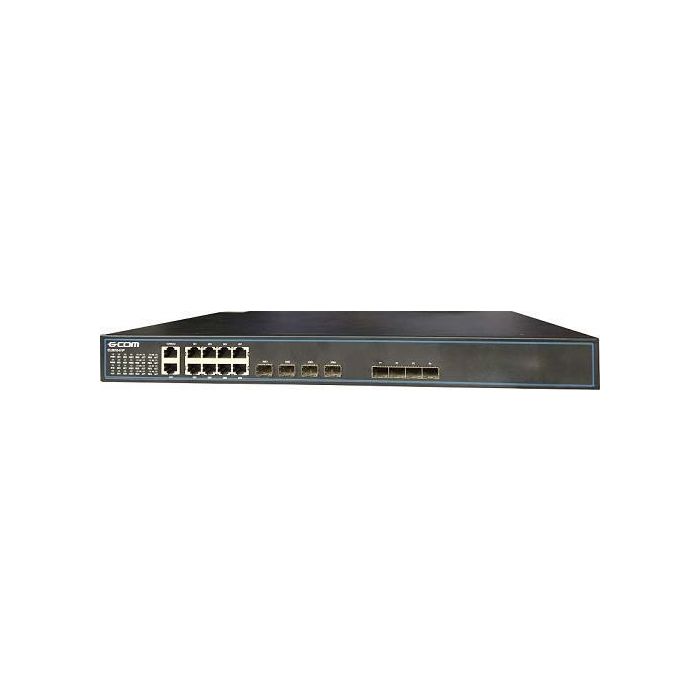

GEPON OLT 4*PON port, 4*10GE/GE SFP+8GE

Switching Capacity

128Gbps

Forwarding Capacity(Ipv4/Ipv6)

95.23Mpps

Service Port

4*PON port, 4*10GE/GE SFP+8GE

Redundancy Design

Built-in double power supply, including AC, double DC, AC+DC, single AC, single DC distinguished via model

Power Supply

AC: input 100～240V, 47/63Hz

DC: input 36V～75V

Power Consumption

≤40W

Dimensions (Width x Depth x Height)

440 mm x 44 mm x 311 mm

Weight (Full-Loaded)

≤3 kg

Environmental Requirements

Working temperature: -10°C～55°C

Storage temperature: -40°C～70°C

Relative humidity: 10%～90%, non-condensing

PON Features

IEEE 802.3ah EPON

China Telecom/ Unicom EPON

Maximum 20 Km PON transmission distance

Each PON port supports the max. 1:64 splitting ratio

Uplink and downlink triple churning encrypted function with 128Bits

Standard OAM and extended OAM

ONU batch software upgrade, fixed time upgrade, real time upgrade

PON transmit and inspect receiving optical power

PON port optical power detection

L2 Features

MAC

MAC Black Hole

Port MAC Limit

16K MAC address

VLAN

4K VLAN entries

Port-based/ MAC-based/ protocol/ IP subnet-based

QinQ and flexible QinQ (StackedVLAN)

VLAN Swap and VLAN Remark

PVLAN to realize port isolation and saving public-vlan resources

GVRP

Spanning Tree

STP/RSTP/MSTP

Remote loop detecting

Port

Bi-directional bandwidth control

Static link aggregation and LACP (Link Aggregation Control Protocol)

Port mirroring

Security

Features

User’s Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP + VLAN + MAC + Port binding

Port Isolation

MAC address binding to the port and MAC address filtering

IEEE 802.1x and AAA/Radius authentication

Device Security

Anti-DOS attack(such as ARP, Synflood, Smurf, ICMP attack), ARP

detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network Security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

IP + VLAN + MAC + Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5

cryptograph authentication

IP Routing

IPv4

ARP Proxy

DHCP Relay

DHCP Server

Static Routing

RIPv1/v2

OSPFv2

BGPv4

Equivalent Routing

Routing Strategy

IPv6

ICMPv6

ICMPv6 Redirection

DHCPv6

ACLv6

OSPFv3

RIPng

BGP4+

Configured Tunnels

ISATAP

6to4 Tunnels

Dual stack of IPv6 and IPv4

Service Features

ACL

Standard and extended ACL

Time Range ACL

Flow classification and flow definition based on source/destination MAC address, VLAN, 802.1p, ToS, DiffServ, source/ destination IP (IPv4/IPv6) address, TCP/UDP port number, protocol type, etc

packet filtration of L2～L7 deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP

priority and Remark

CAR (Committed Access Rate), Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port or self-defined flow. Each port/

flow supports 8 priority queues and scheduler of SP, WRR and

SP+WRR.

Congestion avoid mechanism, including Tail-Drop and WRED

Multicast

IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

PIM-SM/ PIM-DM/ PIM-SSM

PIM-SMv6, PIM-DMv6, PIM-SSMv6

MLDv2/MLDv2 Snooping

Reliability

Loop Protection

EAPS and GERP (recover-time <50ms)

Loopback-detection

Link Protection

FlexLink (recover-time <50ms)

RSTP/ MSTP (recover-time <1s)

LACP (recover-time <10ms)

BFD

Device Protection

VRRP host backup

1+1 power hot backup

Maintenance

Network Maintenance

Port real-time, utilization and transmit/receive statistic based on Telnet

RFC3176 sFlow analysis

LLDP

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device Management

CLI, Console port, Telnet and WEB

SNMPv1/v2/v3

RMON (Remote Monitoring) 1, 2, 3, 9 groups MIB

NTP

NGBNView network management
