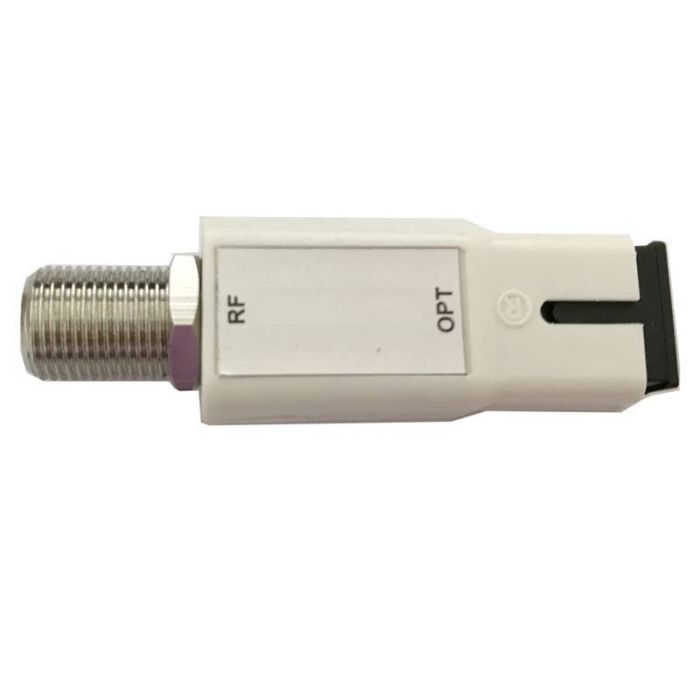

ICBR-1000 means multiwavelength receiving and ICBR-1000R is 1540-1565nm receiving.
♦ Only optical electric exchanging parts, average fault-free time is over 150 thousand hours.
♦ Output ports have F type metric/inch screw, nut base, F base and RF to choose.
♦ Superior low optical power receiving, multiwavelength or single wavelength operating, plug and play.
♦ No external power source required, no consumption, safe and energy conservation.
|
ITEMS |
ICBR-1000R |
|
Wavelength Range |
1540/1565 |
|
Interisolation |
≥30 (1550/1490) |
|
Responsiveness |
≥0.85/≥0.9 |
|
Receive Optical Power Range |
+6～-9 (suggested -1～-6) |
|
Optical Reflection Loss |
≥50 |
|
Linker |
SC/APC or SC/UPC (suggested SC/APC) |
|
Bandwidth/Flatness |
47～1000/≤±2 |
|
Output Level |
66 (0dBm receive) -48 (-9dBm receive) |
|
Return Loss |
≥10 (impedance 75Ω) |
|
RF Output Connector |
Metric or Inch, nut or F base |
|
CNR/MER |
≥44/34 (-0dBm,PAL59CH,OMI3.8%) ≥38/29 (-6dBm) |
|
CTB/CSO/HUM |
≥70/≥66/≥60 (-3dBm/60dBuv) |
|
Operating/Storage Temperature |
-30～55/-40～75 |
|
Operating/Storage Humidity |
5～90 (No Condensation) |
|
Size |
50×15×12 |
| Тегло, кг | 0.000000 |
|---|---|
| Цвят | Бял |
| Country of Manufacture | Китай |
| PON система | FTTH |
| Вид конектор - ОПТИЧЕН | SC/APC |
| Дължина на вълната, nm (дублиран) | 1540, 1565 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
