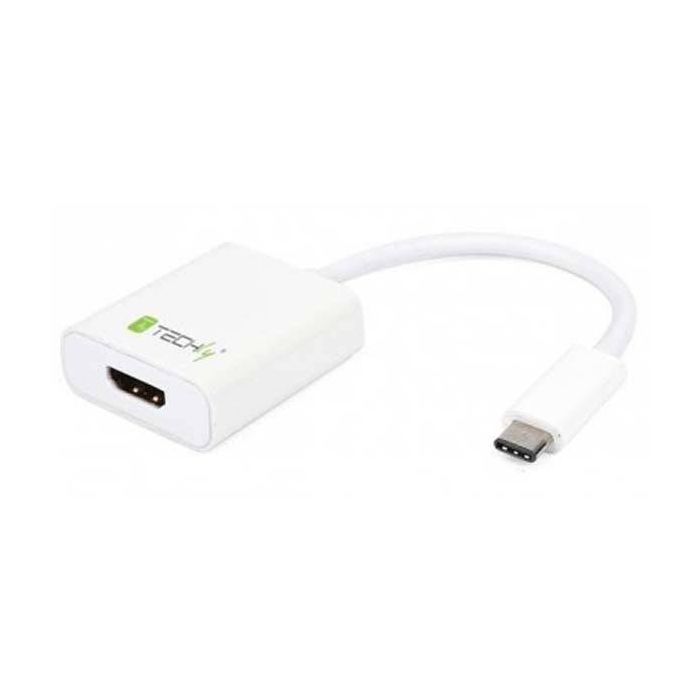

Конвертор USB 3.1 Type C към HDMI 1.4

Features

• Input type C standard USB3.1 and HDMI output
• USB connector for easy connection reversible C IN / OUT
• Supports data rates of 5.4 Gbps linear (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
• Supports resolutions up to 3840x2600 @ 60Hz (mirror mode)
• Converter flexible USB 1.4 to HDMI type C 5G
• Supports multiple color formats: RGB 6/8/10/12-bit per component (bpc) and YCbCr4: 4: 4, YCbCr4: 2: 2.8 / 10 / 12bpc
• Supports HDMI 1.4 and earlier
• Supports resolutions: 4Kx2K, 24 Hz, 25 Hz, 30 Hz; 1080P, @ 24 Hz, 50 Hz, 60 Hz; 720P, 480P, 576i, 480i, @ 50Hz and 60Hz
• Supports HDMI audio
• USB bus powered (no external power required)

Technical specifications

• Entry: 1x USB 3.1 Type C Male
• Output: 1x HDMI 1.4 Female
• Maximum resolution: 3840x2600

Environmental Characteristics

• Operating Temperature: 0-45 ° C
• Operating Humidity: 10% -85% (non-condensing)
• Storage Temperature: -10 / 80 ° C
• Storage Humidity: 5% -90% (non-condensing)

Dimensions

• Width: 41.5 mm
• Depth: 37 mm
• Height: 14.5 mm
• Cable length: 150 mm

Certifications

• EC
• FCC

Package Contents

• 1x USB converter C / HDMI
• 1x User Manual
