New slim type with more practicability and convenience

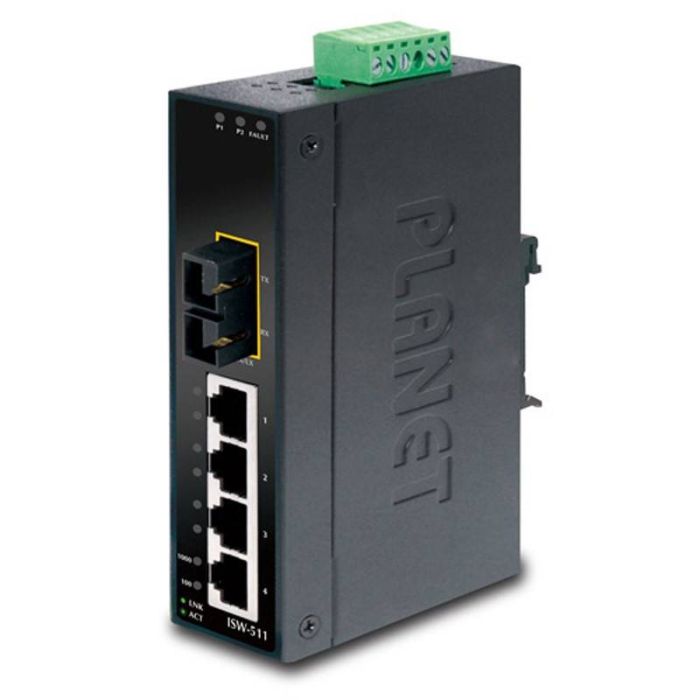

PLANET has released the ISW-511/ ISW-511S15, an advanced industrial hardened Ethernet Switch with new slim type, IP-30 metal case. They each are equipped with 4 10/100Base-TX auto-negotiation ports. The ISW-511 has one 100Base-FX multi-mode SC interface for transmission distance up to 2 km and the ISW-511S15 has one 100Base-FX single-mode SC interface for transmission distance up to 15 km. Both of them operate reliably in Heavy Industrial demanding environments. The compact, IP-30 standard metal case allows either DIN rail or wall mounting for efficient use of cabinet space.
Stable Operating Performance under Difficult Environments
The ISW-511/ ISW-511S15 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. Being able to operate under the temperature range from -10 to 60 degrees C, the ISW-511/ ISW-511S15 can be placed in almost any difficult environment. The ISW-511/ ISW-511S15 also possesses an integrated power supply source with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs.
Robust Switch performance
The ISW-511/ ISW-511S15 each provides four 10/100Base-TX Ethernet ports and one 100Base-FX optic-fiber SC interface and boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps. With 2K MAC address table, they offer wire-speed packets transfer performance without risk of packet loss. The Flow Control function allows the ISW-511/ ISW-511S15 for fast and reliable data transfer.
All of the RJ45 copper interfaces in the ISW-511/ ISW-511S15 support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 3, 4 or 5 cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
| Тегло, кг | 0.000000 |
|---|---|
| Марка | Planet - Тайван |
| Цвят | Черен |
| Country of Manufacture | Тайван |
| Form Factor | За монтаж на DIN шина |
| Вид Лан Портове | 10/100 Mb/s RJ45 |
| Приложение: | Industrial |
| Клас на защита | IP 30 |
| EAN | 4711213688669 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
