Introduction

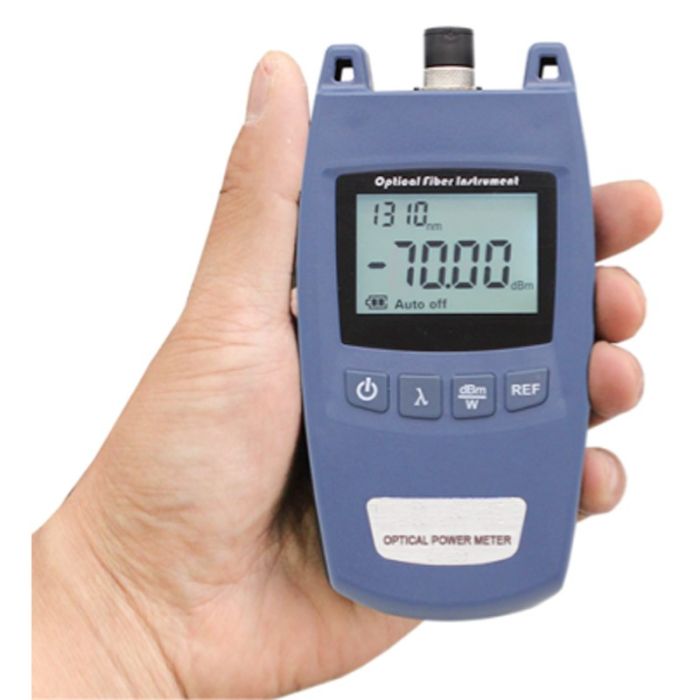

TC-36 Low-Cost Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. TC-36 can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six calibrated wavelength.
Specifications
|
Measurement Range (dBm) |
-70 ~ +10 |
-50 ~ +26 |
|
Wavelength Range (nm) |
800 ~ 1650 |
|
|
Calibrated Wavelength (nm) |
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm |
|
|
Detector |
Inga As |
|
|
Accuracy |
<±3% (-10dBm, 22℃) |
|
|
Resolution |
Linearity: 0.1%; Non-linearity:0.01dBm |
|
|
Working Temperature (℃) |
-10 ~ +50 |
|
|
Storage Temperature |
-20 ~ +70 |
|
|
Relative humidity |
90% (+30℃) |
|
|
Connector |
Three Types: FC, SC/FC, FC/SC/ST |
|
|
Power Supply |
3pcs AAA batteries |
|
|
Working Hours (h) |
>120 (without backlight) |
|
|
Weight (g) |
160 |
|
|
Dimension (mm) |
130×63×29 |
|
Packaging
|
NO. |
ACCESSORY |
QTY. |
|
1 |
Optical Power Meter |
1 PCS |
|
2 |
FC |
1 SET (Different according to your own choice) |
|
FC/SC |
||
|
FC/SC/ST |
||
|
3 |
User Manual |
1 PCS |
|
4 |
AAA Battery |
3 PCS |
|
5 |
Carrying Box |
1 PCS |
