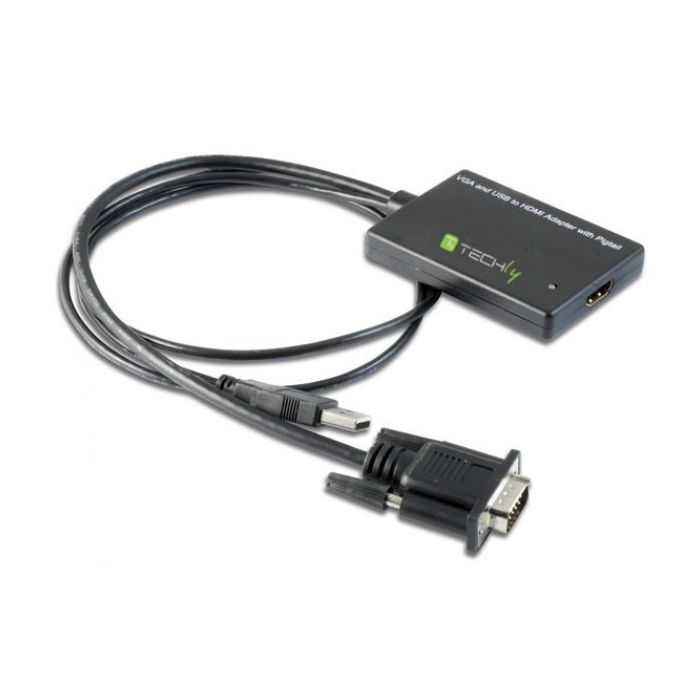

Преобразувател SVGA и Аудио към HDMI

Characteristics

• Convert PC's VGA video and USB 2CH audio to an HDMI signal complete

• Can be installed in seconds without the need for setting

• It supports the most popular resolutions VGA video

• Supports 165 MHz /1.65 Gbps per channel (6.75 Gbps all channel) bandwidth

• Supports color depth of 8 bits per channel (24 bit all channel)

• USB powered

Specification

• Input Video Signal: 0.5-1.0 volts p-p

• Input DDC Signal: 5 volts p-p (TTL)

• Video Output: HDMI

• Joint Resolution VGA: - 640x480 60Hz 75Hz - 800x600 60Hz 75Hz - 1024x768 60Hz 75Hz - 1280x720 60Hz 75Hz - 1280x768 60Hz 75Hz - 1280x960 60Hz 75Hz - 60Hz 1280x1024 75Hz

• Vertical Frequency Range: 50 / 60Hz

• Video Amplifier Bandwidth: 1.65 Gbps / 165 MHz

Physical Information

• Size (L-A-L) 80 mm x 12 mm x 55 mm

• VGA Cable length: 0.3 m

• USB cable length: 1 m

• Weight (approx): 0.113 kg

General Information

• Operating temperature: 0 ° C to + 70 ° C

• Operating Humidity: 10% to 85% RH (non-condensing) • Storage temperature: -10 ° C to + 80 ° C

• Storage humidity: 5% to 95% RH (non-condensing)

Package Contents

• SVGA cable converter and Audio to HDMI

• User manual
