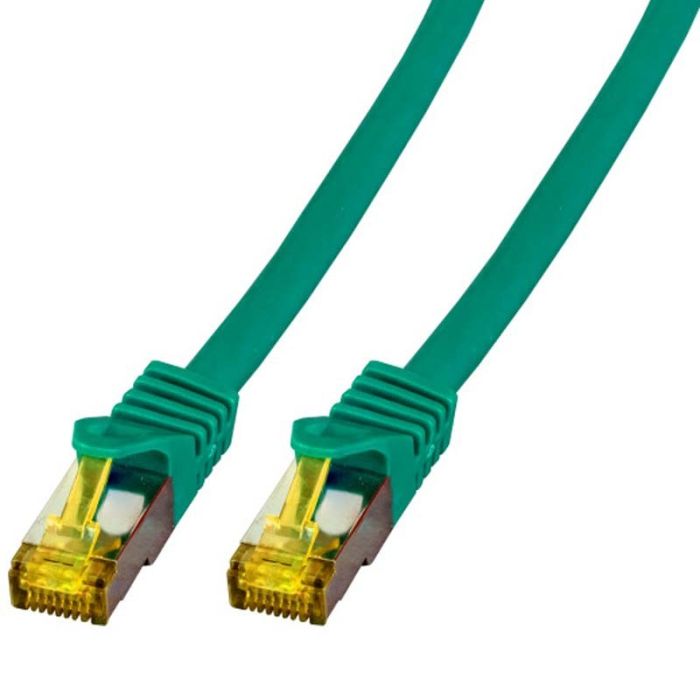

RJ45 Пач корда S/FTP, кат. 6A, LSZH, кат. 7 Raw cable, зелена

Продуктов код
MK7001.xGR

The shielded Cat. 6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

  • Cross section 4 x 2 x AWG26 / 7
  • Moulded grommet, slim design
  • Length imprint on the boot
3,00 лв. 2,50 лв.
3,00 лв. 2,50 лв.
В наличност

Product features

  • Category: 6A (TIA)
  • Type of connector connection 1: RJ45 8(8)
  • Type of connector connection 2: RJ45 8(8)
  • Connector type: RJ45 Standard yellow
  • Contacts: Gold plated
  • Pin assignment: 1:1
  • Allocation: acc.TIA/EIA 568B
  • Type: Shielded
  • Length imprint: yes
  • Anti-kink sleeve: moulded
  • Color anti-kink sleeve: green
  • Locking lever: yes
  • Mating cycles: ≥750
  • Bending radius: >32.5 mm
  • Conductive shield: Selected shield contact
  • Raw cable: Cat.7
  • Cable structure: S/FTP
  • Cable construction: 4x2
  • AWG-size/strands per core: 26/7
  • Conductor Material: Copper
  • Silicone-free: yes
  • Jacket material: LSZH
  • Color outer sheath: green
  • Outer diameter of the cable: 6.5 mm
  • Flame-retardant: acc. IEC60332-1
  • Halogen-free: acc. IEC60754-2
  • Low smoke: acc. IEC61034
  • Temperature range: -20 – 60 °C
  • Impedance: 100 ±5 Ω
  • Conductor resistance: DC146 Ω/km
  • Loop resistance: 292 Ω/km
  • Resistance unbalance: 5%
  • Insulation resistance: 10 MΩ
  • Contact resistance: 30 mΩ
  • Test voltage: 1000 (V DC, 1min) core/core und core/screen
  • POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Bandwidth: 500MHz
  • Transmission: 10Gbit
  • Connector: IEC 60603-7-51
Допълнителна информация
Тегло, кг0.000000
МаркаEFB Elektronik
ЦвятЗелен
ЕкраниранДА
ЕкранировкаS/FTP
Категория кабелкат. 6a, кат. 7
Вид конектор - КОМПЮТЪРЕНRJ45
AWG-size26
Jacket typeLSZH
Дълбочина, см0.000000
Ширина, см0.000000
Височина, см0.000000
