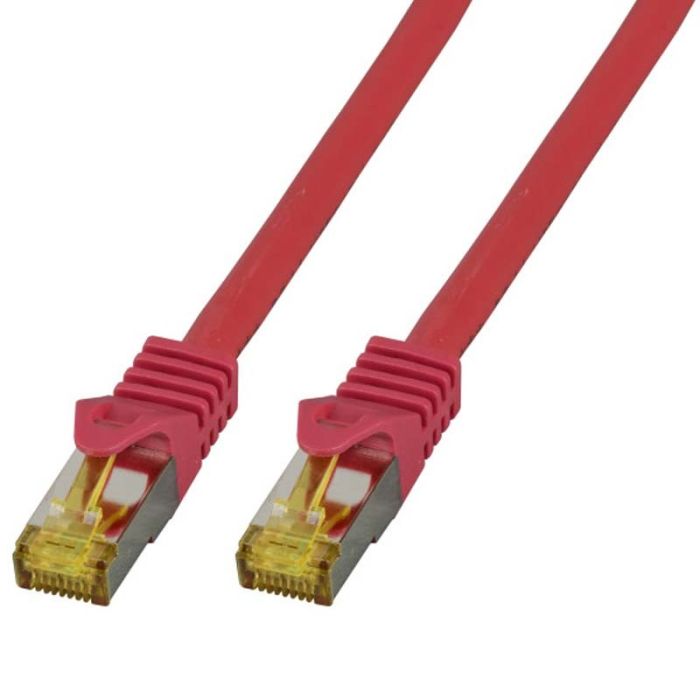

Product features
- Category: 6A (TIA)
- Type of connector connection 1: RJ45 8(8)
- Type of connector connection 2: RJ45 8(8)
- Connector type: RJ45 Standard yellow
- Contacts: Gold plated
- Pin assignment: 1:1
- Allocation: acc.TIA/EIA 568B
- Type: Shielded
- Length imprint: yes
- Anti-kink sleeve: moulded
- Color anti-kink sleeve: red
- Locking lever: yes
- Mating cycles: ≥750
- Bending radius: >32.5 mm
- Conductive shield: Selected shield contact
- Raw cable: Cat. 7
- Cable structure: S/FTP
- Cable construction: 4x2
- AWG-size/strands per core: 26/7
- Conductor Material: Copper
- Silicone-free: yes
- Jacket material: LSZH
- Color outer sheath: red
- Outer diameter of the cable: 6.5 mm
- Flame-retardant: acc. IEC60332-1
- Halogen-free: acc. IEC60754-2
- Low smoke: acc. IEC61034
- Temperature range: -20 – 60 °C
- Impedance: 100 ±5 Ω
- Conductor resistance: DC146 Ω/km
- Loop resistance: 292 Ω/km
- Resistance unbalance: 5%
- Insulation resistance: 10 MΩ
- Contact resistance: 30 mΩ
- Test voltage: 1000 (V DC, 1min) core/core und core/screen
- POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
- Bandwidth: 500MHz
- Transmission: 10Gbit
- Connector: IEC 60603-7-51
| Тегло, кг | 0.000000 |
|---|---|
| Марка | EFB Elektronik |
| Цвят | Червен |
| Екраниран | ДА |
| Екранировка | S/FTP |
| Категория кабел | кат. 6a, кат. 7 |
| Вид конектор - КОМПЮТЪРЕН | RJ45 |
| AWG-size | 26 |
| Jacket type | LSZH |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
Напишете вашето мнение
