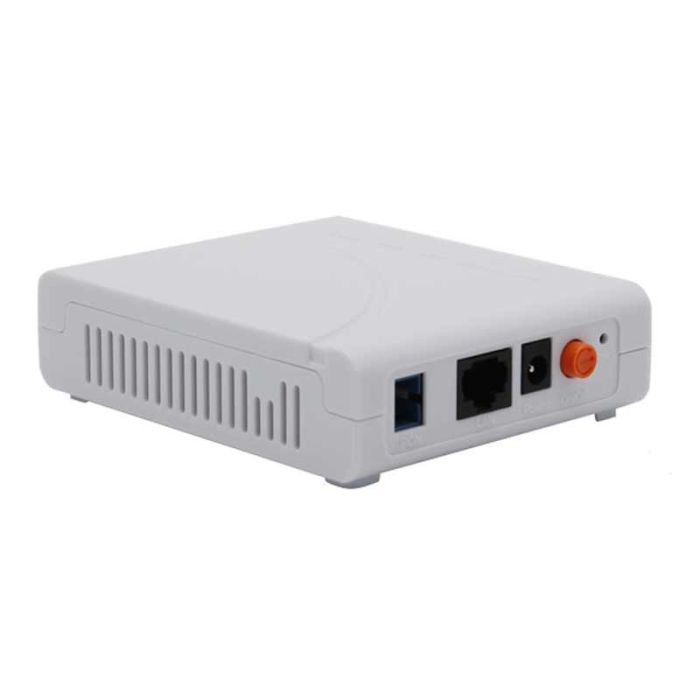

GPON ONU 1 порт, ZTE чипсет, рутер функции

Продуктов код
ICB-8010U-FZ

ICB-8010U-FZ is GPON ONT designed for fulfilling FTTH ultra-broadband access request of home and SOHO users. It is based on the stable and mature GPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS, and fully compliant to ITU-T G.984 GPON standards.

Прикачени файлове
28,68 лв. 23,90 лв.
28,68 лв. 23,90 лв.
В наличност

Features:

  • Plug and play, integrated auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Integrated OMCI remote configuration and maintenance function.
  • Functions like transceiver diagnostic monitoring, transmitter disable, etc.
  • Fully compatibility with OLT based on Broadlight/Broadcom chipset.
  • Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
  • Support auto polarity detection of Ethernet ports (AUTO MDIX).
  • Support router

Port features:

  • 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
  • 1 10/100/1000M port

Physical features:

  • Power supply: 12VDC
  • Power consumption: 4W
  • Dimension: 115mm*30mm*90mm(W*H*D)
  • Net weight < 0.4Kg

Temperature:

  • Working temperature:0~55℃
  • Storage temperature: -30~60℃
  • Relative humidity: 10~90% (non-condensing)
Допълнителна информация
Тегло, кг0.000000
ЦвятБял
Country of ManufactureКитай
Видове портовеGPON
PON системаGPON
Дълбочина, см0.000000
Ширина, см0.000000
Височина, см0.000000
  • 1GE GPON and EPON ONU Manual

    Ръководство за употреба на 1GE GPON и EPON ONU, ZTE Chipset, рутер функции

    Изтегляне
