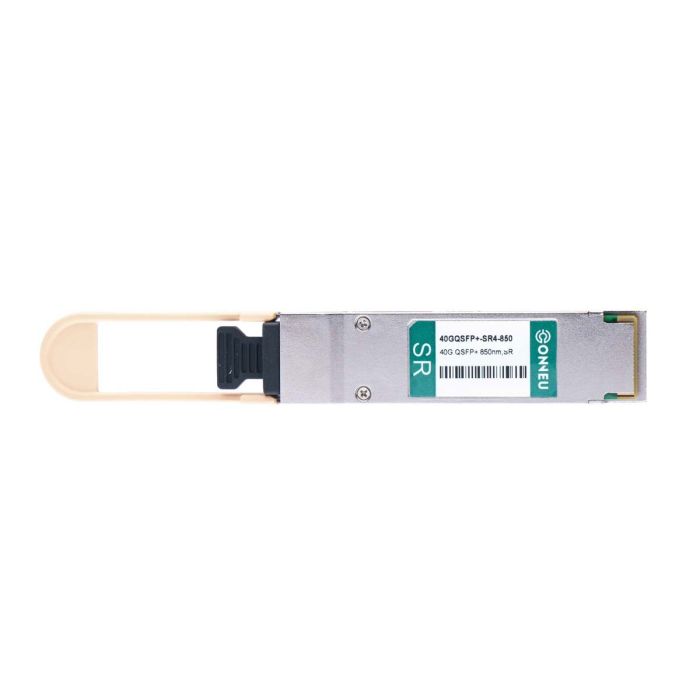

40G QSFP+ SR4 850 nm 150 m MMF, MPO

Продуктов код
40GQSFP+-SR4-850

Conneu 40GQSFP+-SR4-850 transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, control and bias blocks. The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4 channel output buffer, control blocks.

69,48 лв. 57,90 лв.
69,48 лв. 57,90 лв.
В наличност

PRODUCT FEATURES

  • High Channel Capacity: 40 Gbps per module
  • Up to 11.1Gbps Data rate per channel
  • Maximum link length of 100m links on OM3 multimode fiber Or 150m on OM4 multimode fiber
  • High Reliability 850nm VCSEL technology
  • Electrically hot-pluggable
  • Compliant with QSFP+ MSA
  • Case operating temperature range:0°C to 70°C
  • Power dissipation < 1.5 W

APPLICATIONS

  • 40G Ethernet
  • Infiniband QDR
  • Fiber channel

STANDARD

  • Compliant to IEEE 802.3ba
  • Compliant to SFF-8436
  • RoHS Compliant
Допълнителна информация
Тегло, кг0.000000
МаркаConneu
Country of ManufactureКитай
Максимално разстояние150 м
Приложение:Commercial
Скорост на предаване40G
SFP типQSFP+
Вид конектор - ОПТИЧЕНMPO
Дължина на вълната, nm (дублиран)850
Дълбочина, см0.000000
Ширина, см0.000000
Височина, см0.000000
