RJ45 Плоска пач корда екранирана U/FTP, Kатегория 6а, сива

Продуктов код
K5545GR.x

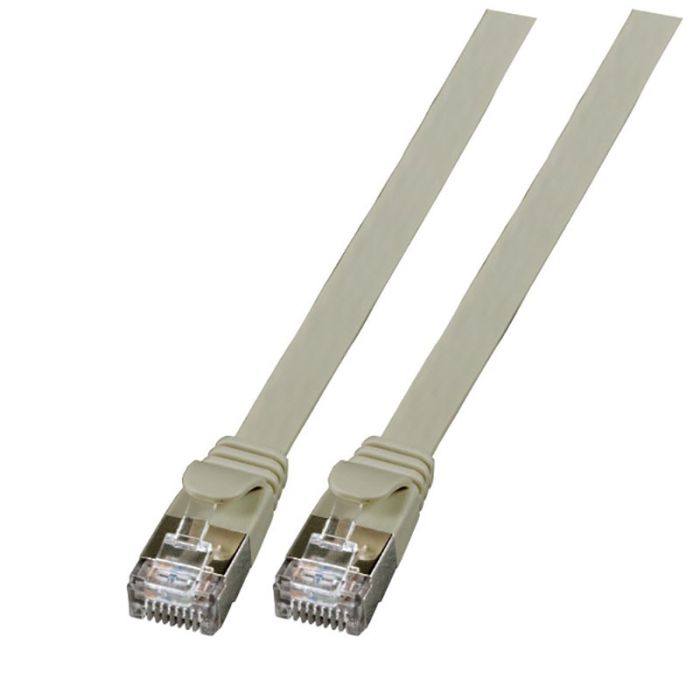

The pair-shielded Cat. 6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications.

The flat patch cable impresses with its flat construction and is with 2.2 mm height ideal for laying e.g. behind ledges or under a carpet.

The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.

  • Sheath material: PVC
  • Cross section: 4 x 2 x AWG30 / 7
  • Cable diameter: 7.0x2.2 mm
  • Plug type: short plug
3,12 лв. 2,60 лв.
3,12 лв. 2,60 лв.
Няма наличност
  • Category: 6A (TIA)
  • Type of connector connection 1: RJ45 8(8)
  • Type of connector connection 2: RJ45 8(8)
  • Connector type: RJ45 short version
  • Contacts: Gold plated
  • Pin assignment: 1:1
  • Allocation: acc. TIA/EIA 568B
  • Type: Shielded
  • Anti-kink sleeve: Moulded
  • Color anti-kink sleeve: Grey
  • Locking lever: Yes
  • Mating cycles: ≥750
  • Bending radius: >20 mm
  • Conductive shield: Selected shield contact
  • Cable structure: U/FTP
  • Cable construction: 4x2
  • AWG-size/strands per core: 30/7
  • Conductor Material: Copper
  • Silicone-free: Yes
  • Jacket material: PVC
  • Color outer sheath: Grey
  • Outer diameter of the cable: 7.0*2.2 mm
  • Temperature range: -20 – 55 °C
  • NVP value: 76 %
  • Impedance: 100 ±15 Ω
  • Conductor resistance DC: 376 Ω/km
  • Loop resistance: 752 Ω/km
  • Resistance unbalance: <4 %
  • Insulation resistance: 100 MΩ
  • Test voltage: 1000 (V DC, 1min) core/core und core/screen
  • POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
  • Bandwidth: 500MHz
  • Connector: IEC 60603-7-51
Допълнителна информация
Тегло (кг)0.000000
МаркаEFB Elektronik
ЦвятСив
Категория кабелкат. 6a
ЕкраниранДА
ЕкранировкаU/FTP
Jacket typePVC
AWG-size30
Вид конектор - КОМПЮТЪРЕНRJ45
