- VDE-Name: I-V(ZN)H 2x1G 50/125

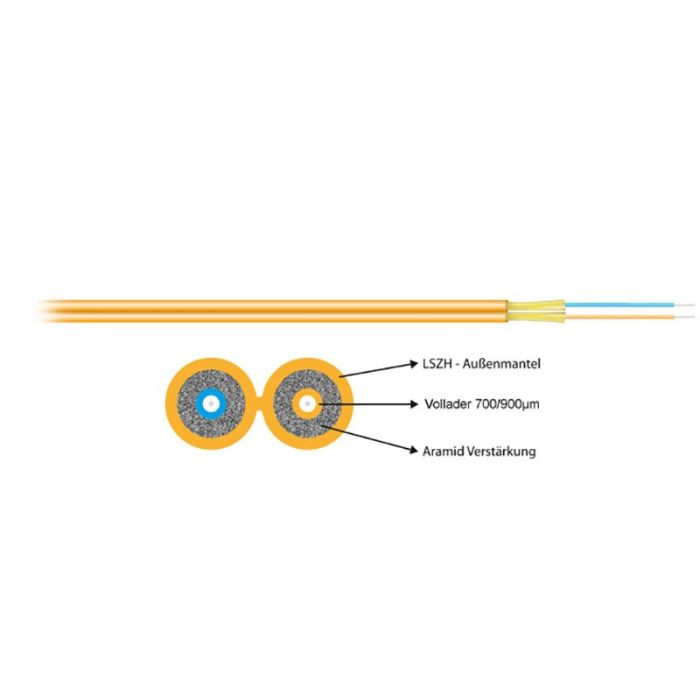

- Construct: 2x1 OM2
- Cable: Ø2.8 x 5.7 mm
- Weight: 16 kg/km
- Bending radius: 45 mm
- Tensile Force: 400 N
- Application: Inside
- Cable metal free: Yes
- Crush resistance: 600 N/dm
- Fiber type: Multimode 50/125
- Fiber category: OM2
- Type of tube: Tight tube
- Fiber marking: Color
- Strain relief: Yes
- Armoring: Yes
- Material outer sheath: LSZH
- Color outer sheath: Orange
- Flame retardant: acc. EN 60332-1-2
- Low smoke: acc. EN 61034
- Temperature Range (Operation): -20 – 60 °C
- Temperature Range (Storage): -25 – 70 °C
- Temperature Range (Installation): -5 – 50 °C
- IL max. (dB/km) 850nm: <2.7 dB/km
- IL max. (dB/km) 1300nm: <0.7 dB/km
- Cabling standards: EN 50173-1;ISO/IEC 11801
| Тегло, кг | 0.000000 |
|---|---|
| Марка | EFB Elektronik |
| Цвят | Оранжев |
| Jacket type | LSZH |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
