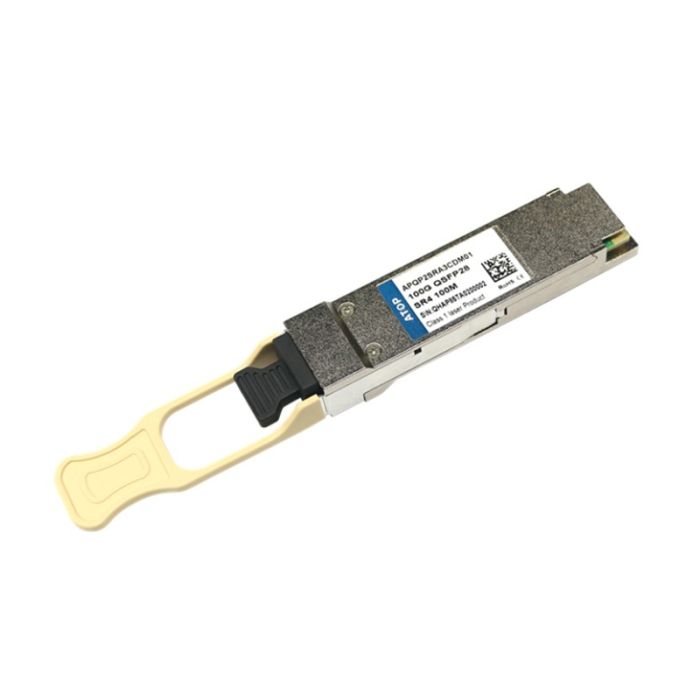

- An integrated transceiver module containing a micro-optic component and semiconductor material
- Can implement optical-electrical conversion and electrical-optical conversion
- The module is designed as a four-channel, pluggable, parallel, QSFP28 transceiver for 100Gbps fiber-communication
- Each channel can operate at 25Gbps up to 100m on OM4 fiber
- The operating wavelength is 850nm
- The optical interface uses an 12 fiber MTP(MPO) connector
- The electrical interface uses a 38 contact edge type connector
- This product is compliant to 100GBASE-SR4 of IEEE802.3bm standard and SFF-8436 specification
- Provides reliable long life, high performance and consistent service
| Тегло, кг | 0.000000 |
|---|---|
| Марка | Atop technology |
| Rec. Sens | -5.2 |
| SFP Output power | -8.4~2.4 |
| SFP Component | VCSEL/PIN |
| Скорост на предаване | 100G |
| SFP тип | QSFP28 |
| Вид конектор - ОПТИЧЕН | MPO |
| Дължина на вълната, nm (дублиран) | 850 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
