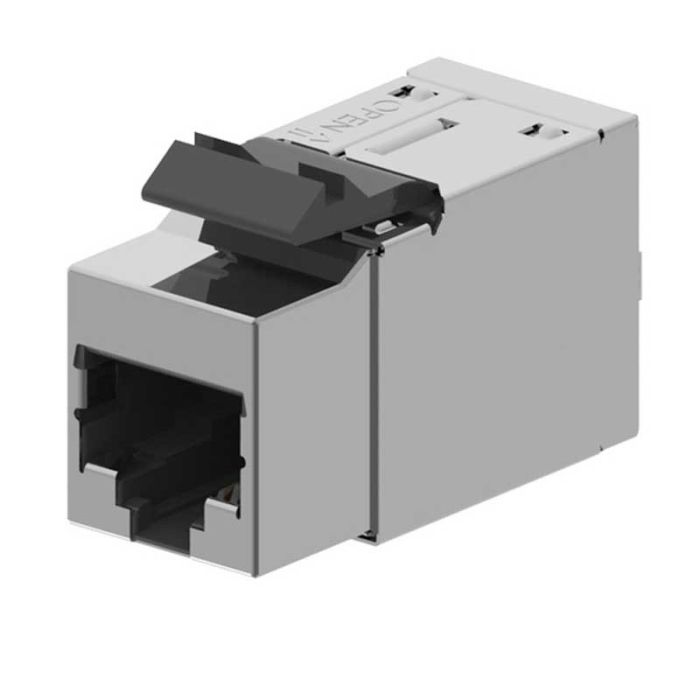

RJ45 екраниран жак без капаче против прах, кат. 5E

Product Classification

• Regional Availability: Asia | EMEA | Latin America | North America
• Portfolio: NETCONNECT
• Product Type: Modular jack
• Product Series: SL Series

General Specifications

• Category: 5e
• Cable Type: Shielded
• Color: Black
• Conductor Type: Solid | Stranded
• Integrated Dust Cover Type: None
• Outlet Type: Standard
• Termination Punchdown, minimum: 200 times
• Termination Tool: SL Termination tool
• Termination Type: IDC
• Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D
• Wiring: T568A | T568B

Dimensions

• Panel Cutout, recommended: 14.78 x 20.07 mm (0.58 x 0.79 in)
• Panel Thickness, recommended: 1.6 mm | 0.063 in
• Height: 16.26 mm | 0.64 in
• Width: 14.48 mm | 0.57 in
• Depth: 30.48 mm | 1.2 in
• Compatible Insulated Conductor Diameter, maximum: 1.45 mm | 0.057 in
• Contact Plating Thickness: 1.27 µm
• Compatible Conductor Gauge, solid: 24–22 AWG
• Compatible Conductor Gauge, stranded: 26–24 AWG

Electrical Specifications

• Safety Voltage Rating: 150 Vac

Material Specifications

• Contact Base Material: Beryllium copper
• Contact Plating Material: Gold
• Material Type: Polycarbonate

Mechanical Specifications

• Plug Insertion Life, minimum: 750 times
• Plug Retention Force, minimum: 89 N | 20.008 lbf

Environmental Specifications

• Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Flammability Rating: UL 94 V-0
• Safety Standard: CSA | cUL

Packaging and Weights

• Included: Strain relief cap
• Packaging quantity: 1
• Packaging Type: Bag

Regulatory Compliance/Certifications

• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
• REACH-SVHC: Compliant
