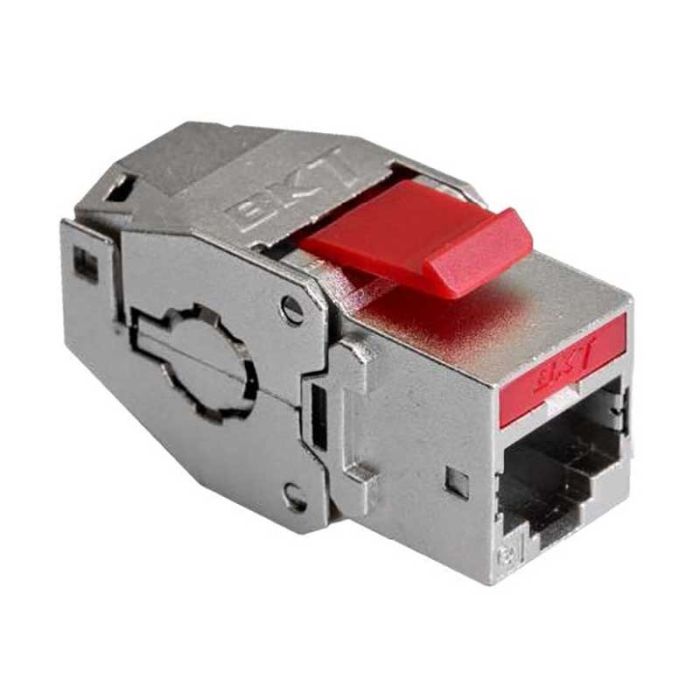

Екраниран RJ45 жак, BKT категория 6A, 500MHz

• Each keystone module includes dust cover of the port which protects pins against both dust and mechanical damage
• The system of colored id tags/dust covers allows to divide network identification according to the preferences of the user or administrator
• A unique mounting system enabling cable entry from the side or traditionally at the back of the module
• The “keystone” standard of the module guarantees compatibility with a wide range of electro-installation accessories
• The cable insertion from the back of the module doesn't need use of cable tie
• The Faston 250 series connector integrated with the module housing makes it easier to ground each modules individually
• Universal IDC slot connection for solid and stranded wires with 22-26 AWG
• Integrated short circuit protection of conductors
• T568A/B scheme indicated on the tool free organizer and inside the module
• Standards compliance confirmed by tests carried out in independent laboratories
• Certified compliance with PoE standard (PoE, PoE+, 4PPoE)
• Compact dimensions (H x W x D) – 20,4 mm x 16 mm x 38 mm

3 assembly methods:

1.Toolless: no special assembly tools needed

2.Tool: using 110 IDC impact tool

3.Tool: using BKT HAT automatic tool
