Product Classification

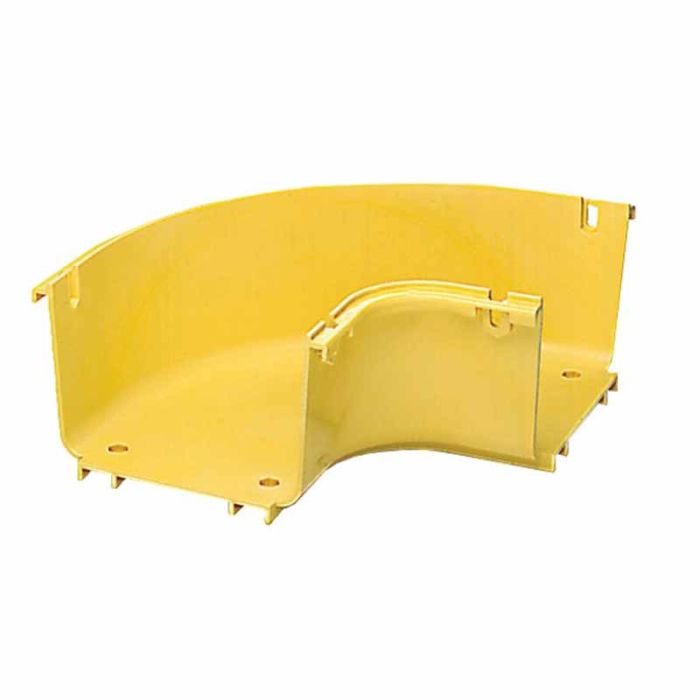

- Product Type: Fiber raceway elbow section
- Product Brand: FiberGuide®
- Product Series: FGS
General Specifications
- Angle/Bend Direction: 90°
- Color: Yellow
- Orientation: Horizontal
- Section Type: Elbow section
Dimensions
- Height: 112 mm | 4.409 in
- Width: 152 mm | 5.984 in
- Length: 288 mm | 11.339 in
- System Dimensions: 102 mm x 152 mm (4 in x 6 in)
Material Specifications
- Material Type: Engineering Thermoplastic
Environmental Specifications
- Flammability Rating: CSA S143 | UL 2024 | UL 94 V-0
- Halogen Characteristics: Blue Angel | TCO '99 | WEEE
- Safety Standard: CSA | UL
Packaging and Weights
- Weight, net: 0.509 kg | 1.122 lb
Regulatory Compliance/Certifications
- ROHS: Compliant
- CHINA-ROHS: Below maximum concentration value
- REACH-SVHC: Compliant
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Цвят | Жълт |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
