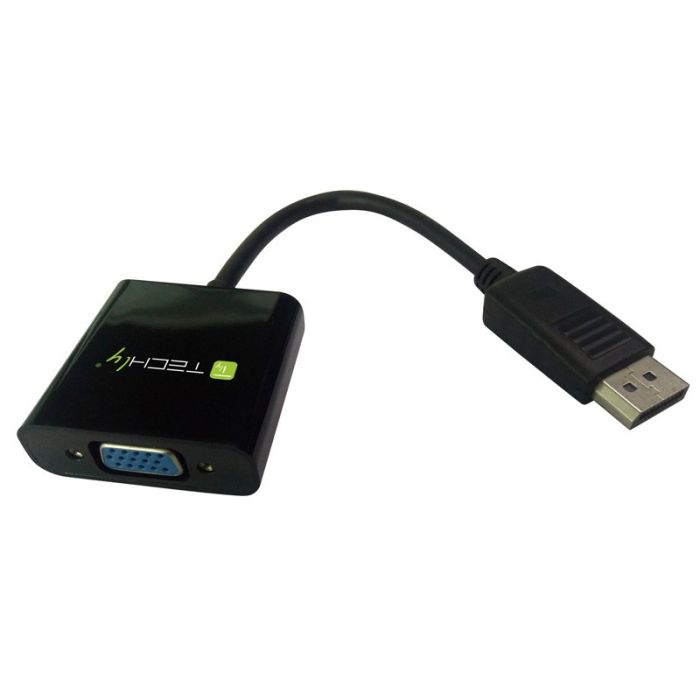

Адаптер Display Port 1.2 мъжки към VGA женски, 0.15 м, черен

General information

• Compliant with VESA DisplayPort 1.2 standard and is compatible with the previous version 1.1a
• Compatible with VESA Standard and DP v1.3
• 2 lanes of high speed differential input with configurable speed: 2.7Gbps or 1.62Gbps
• Supports Down Spread Spectrum (SSC)
• Supports resolution with pixel rates up to 180MHz
• Supports resolutions up to WQXGA (1920x1200 @ 60HZ, reduced blanking, 24bpp)
• VGA output compliant VESA VSIS V1R2 clock jitter specification
• Stand-by mode with low consumption with automatic detection of connection and disconnection of the monitor
• Speed ​​Control DDC for use with VGA cables longer
• EDID pass-through from PC source to display
• Expanded Spectrum (de-spreading) for EMI reduction
• Operation at low power consumption - 485mW active, 12mW in standby mode
• Maximum Single Link Range. 1920 x 1200, 1080p
• Vertical Frequency Range: 50/60 Hz
• Video formats supported: VGA up to 1920 x 1200
• Video Bandwidth: 180MHz
• Cable Converter V.1.2 DisplayPort to VGA

Technical specifications

• Typology: Video
• Connector A Type: DisplayPort 20-pin
• format A connector: male
• Connector B Type: VGA
• format B connector: female
• Headphone connectors: Yes
• Cable shielding: No
• Cable size (AWG): No
• Color: Black
• Length: 0.15 meters
