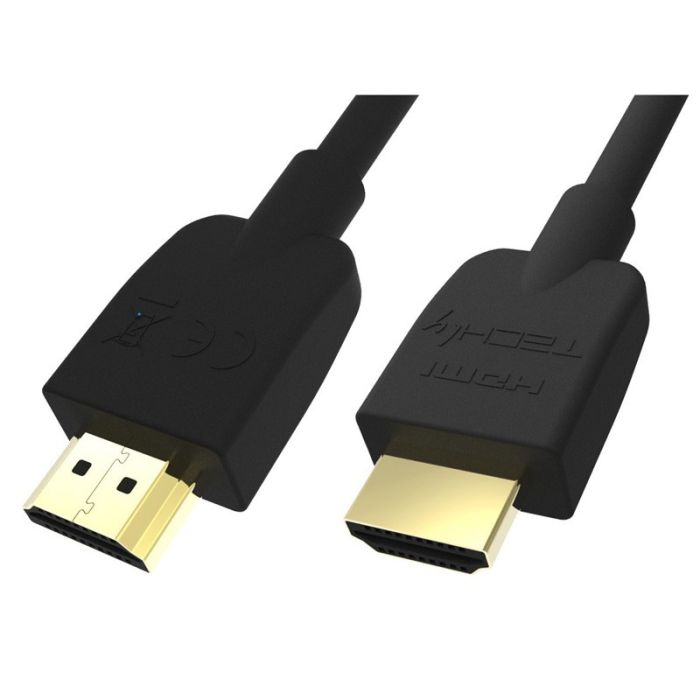

HDMI 2.0 High Speed кабел с Ethernet 4K A/A към M/M, черен

Specifications

• Connections from HDMI™ 2.0 19-pin male to HDMI™ 19-pin male
• High-speed, bidirectional communication up to 100 Mbps
• Supports 4K * 2K / 60Hz resolution
• Compliant with HDMI ™ High Speed ​​specifications
• Die-cast PVC connector cover
• HDMI™ Ethernet Channel: supports internet connection via HDMI™ (HEC)
• Channel Audio Return: allows an HDMI™ connected to a TV with an integrated tuner to send the audio data "upstream" to a surround sound system, eliminating the need for a separate audio cable
• Supports 3D: defines input / output protocols for the main 3D video formats, also for games and 3D home theater applications
• Supports Ultra HD 4K resolution 4000x2000: allows video resolutions far beyond 1080p, supports new generation displays

General information

• Typology: HDMI 2.0 High Speed with Ethernet
• Bandwidth: 18 Gbps
• Maximum resolution: 4096 × 2160 60 Hz
• 600 MHz
• Supports HEC

Connectors and cable

• 2 x HDMI™ 2.0 19-pin male
• Connector A Type: HDMI-A
• format A connector: male
• Connector B Type: HDMI-A
• format B connector: male
• Gold coated contacts
• Die-cast PVC connector covers
• Shielded, braid and aluminum foil
• Internal conductors: AWG 30
• Cable diameter: 6.0 mm

Features

• Supports YCbCr 4: 2: 0
• Supports 32 audio channels
• Supports 1536 kHz audio
• Supports 4 audio streams
• Supports 2 audio streams
• Supports 21: 9 display

Electrical information

• Current index: 0.5 A DC
• Supports voltage 300 V DC
• Insulation resistance: 50 MOhms
• Conductive resistance: 2 Ohms

Standards and certifications

• UL 20276
• ISO 9002
• RU
• EC
• RoHS
• REACH

Package contents

• HDMI ™ 2.0 cable
