Product Classification
- Regional Availability: Asia | Australia/New Zealand | EMEA | Latin America
- Portfolio: NETCONNECT®

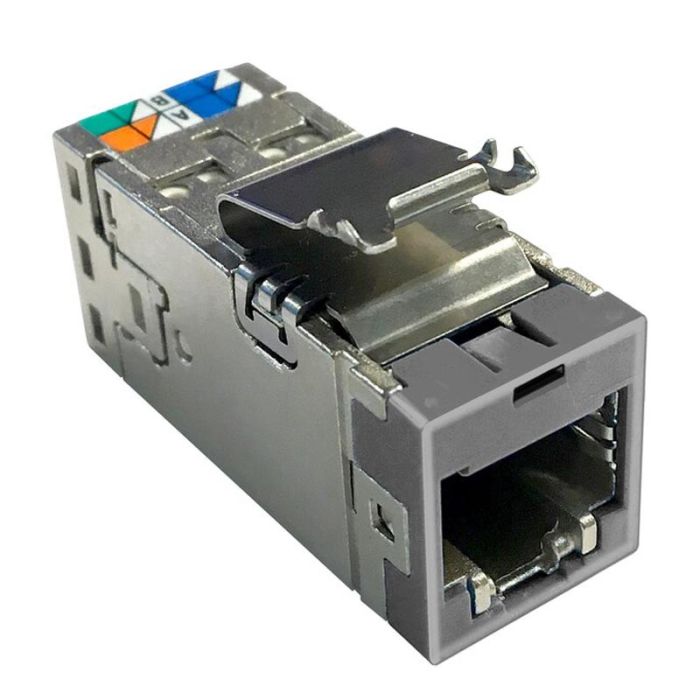

- Product Type: Modular jack
- Product Series: SLX Series
General Specifications
- ANSI/TIA Category: 6
- Cable Type: Shielded
- Color: Grey
- Conductor Type: Solid | Stranded
- Integrated Dust Cover Type: None
- Mounting: SL Series faceplates and panels
- Mounting Note: Color matches with SL-style Grey Faceplates and Surface Mount Boxes
- Outlet Type: Standard
- Termination Punchdown, minimum: 5 times
- Termination Tool: SL Termination tool
- Termination Type: IDC
- Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
- Wiring: T568A | T568B
Dimensions
- Panel Cutout, recommended: 14.78 x 20.07 mm (0.58 x 0.79 in)
- Panel Thickness, recommended: 1.6 mm | 0.063 in
- Height: 16.13 mm | 0.635 in
- Width: 14.44 mm | 0.569 in
- Depth: 36.8 mm | 1.449 in
- Compatible Cable Diameter, maximum: 8.5 mm | 0.335 in
- Compatible Insulated Conductor Diameter, maximum: 1.6 mm | 0.063 in
- Contact Plating Thickness: 1.27 µm
- Compatible Conductor Gauge, solid: 26–22 AWG
- Compatible Conductor Gauge, stranded: 26–24 AWG
Electrical Specifications
- Remote Powering: Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002
Material Specifications
- Contact Base Material: Beryllium copper
- Contact Plating Material: Gold
- Material Type: Polycarbonate | Zamak
Mechanical Specifications
- Plug Insertion Life, minimum: 750 times
Environmental Specifications
- Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
- Flammability Rating: UL 94 V-0
Packaging and Weights
- Packaging Material: Standard
- Packaging quantity: 24
- Packaging Type: Bag | Box
Regulatory Compliance/Certifications
- RCM: Compliant to electrical safety & telecommunications requirements
- ROHS: Compliant/Exempted
- CHINA-ROHS: Above maximum concentration value
| Тегло, кг | 0.000000 |
|---|---|
| Марка | COMMSCOPE |
| Цвят | Сив |
| Категория кабел | кат. 6 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
