Product Classification
- Regional Availability: EMEA
- Portfolio: NETCONNECT®

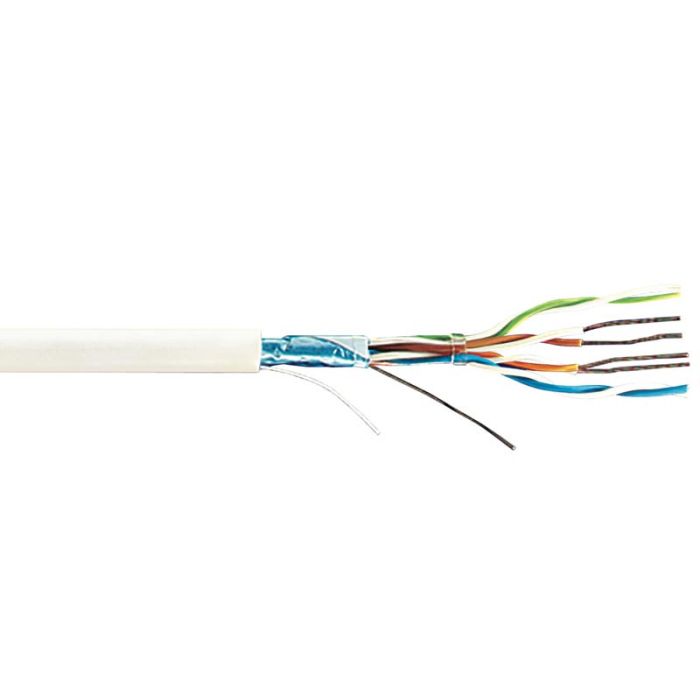

- Product Type: Twisted pair cable
General Specifications
- ANSI/TIA Category: 5e
- Cable Component Type: Horizontal
- Cable Type: F/UTP (shielded)
- Conductor Type, singles: Solid
- Conductors, quantity: 8
- Jacket Color: White
- Pairs, quantity: 4
- Transmission Standards: ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
Dimensions
- Cable Length: 304.8 m
- Diameter Over Jacket, nominal: 6.096 mm
- Conductor Gauge, singles: 24 AWG
Electrical Specifications
- Operating Voltage, maximum: 80 V
- Remote Powering: Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Material Specifications
- Conductor Material: Bare copper
- Insulation Material: Polyolefin
- Jacket Material: PVC
- Shield (Tape) Material: Aluminum/Polyester
Environmental Specifications
- Operating Temperature: -40 °C to +75 °C (-40 °F to +167 °F)
- EN50575 CPR Cable EuroClass Fire Performance: Eca
Packaging and Weights
- Packaging Type: Reel
Regulatory Compliance/Certifications
- CENELEC: EN 50575 compliant, Declaration of Performance (DoP) available
