Compact Size for More Practicability and Convenience

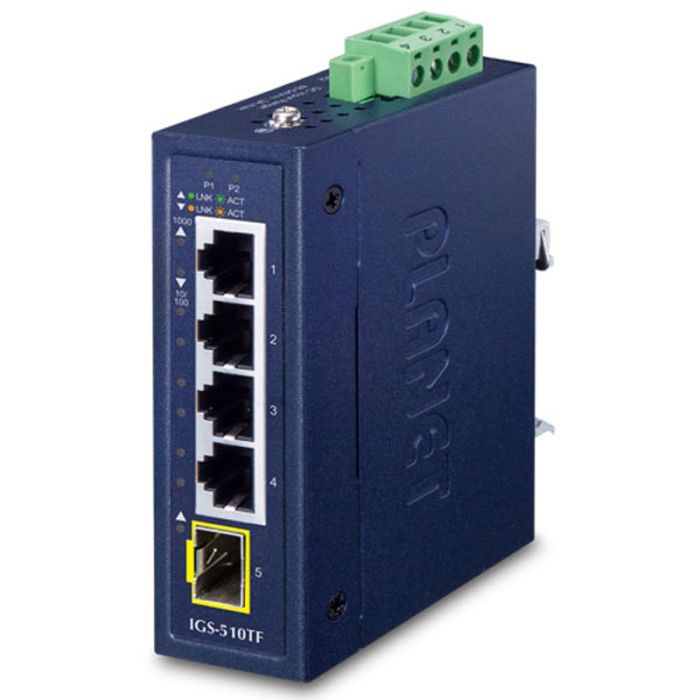

PLANET IGS-510TF is an industrial-grade Gigabit Ethernet Switch, featuring four 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C and a wide-ranging redundant power system (9~48V DC or 24V AC), the IGS-510TF provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.
Physical Port
- 4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
- One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Layer 2 Features
- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X Ethernet standard
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
- Backplane (switching fabric): 10Gbps
- Integrated address look-up engine, supporting 2K absolute MAC addresses
- 9K jumbo packet size
- Automatic address learning and address aging
- CSMA/CD Protocol
Industrial Case and Installation
- IP30 metal case
- DIN rail and wall-mount designs
- 9 to 48V DC and 24V AC power support, redundant power with reverse polarity protection
- Removable terminal block for master and slave power
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
Тегло, кг | 0.000000 |
---|---|
Марка | Planet - Тайван |
Цвят | Син |
Country of Manufacture | Тайван |
Form Factor | За монтаж на DIN шина |
Приложение: | Industrial |
Клас на защита | IP 30 |
Дълбочина, см | 0.000000 |
Ширина, см | 0.000000 |
Височина, см | 0.000000 |
