Flexible, Reliable and Industrial-grade Network Distance Extension Solution

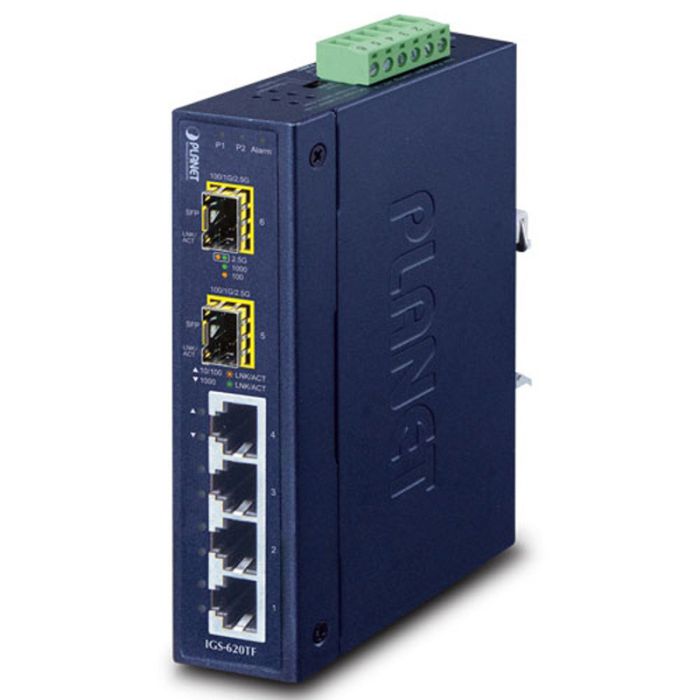

PLANET IGS-620TF is an Industrial 6-port full Gigabit Ethernet Switch providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It provides 4-port 10/100/1000BASE-T RJ45 copper and 2 extra 100/1000/2500BASE-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGS-620TF is well suited for applications like deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C.
Physical Port
- Four 10/100/1000BASE-T RJ45 ports with auto MDI / MDI-X function
- Two SFP interfaces, supporting 100/1000/2500BASE-X transceiver type auto detection
Fiber Port Redundancy
- Automatically detects link status and redundancy on dual ports with the same connector type.
- Only primary port is active at a time, while the backup port is blocked.
- When primary port link failure occurs, the traffic will swap to backup port automatically.
- Once the primary-port status is back to link up, the traffic will swap from backup port to primary port.
Layer 2 Features
- Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K Jumbo Frame size support
- Backplane (Switching Fabric): 18Gbps
- Integrated address look-up engine, supporting 4K absolute MAC addresses
- Automatic address learning and address aging
- IEEE 802.1Q VLAN transparency
- CSMA/CD Protocol
Industrial Case and Installation
- Slim IP30 metal case protection
- DIN-rail, wall-mount or side wall-mount design for redundant power design
- 12 to 48V DC, redundant power with reverse polarity protection
- AC 24V power adapter acceptable
- Supports 6000 VDC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
| Тегло, кг | 0.000000 |
|---|---|
| Марка | Planet - Тайван |
| Цвят | Син |
| Form Factor | За монтаж на DIN шина |
| Брой RJ45 портове | 4 |
| Приложение: | Industrial |
| Клас на защита | IP 30 |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
