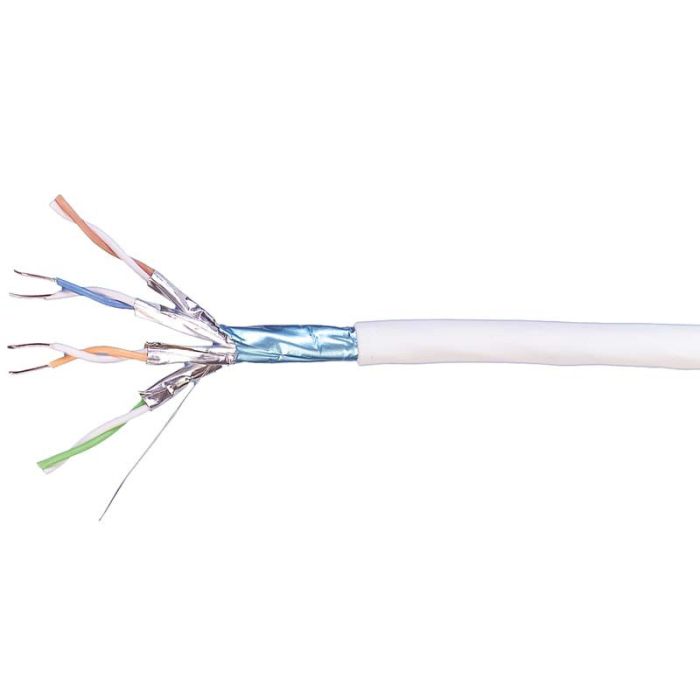

Категория 6A F/FTP кабел CS44Z3, LSZH, бял

General Specifications

• Product Number: CS44Z3
• ANSI/TIA Category: 6A
• Cable Component Type: Horizontal
• Cable Type: F/FTP (shielded)
• Conductor Type, singles: Solid
• Conductors, quantity: 8
• Jacket Color: White
• Pairs, quantity: 4
• Transmission Standards: ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA

Electrical Specifications

• Coupling Attenuation: Type II
• dc Resistance Unbalance, maximum: 2 %
• dc Resistance, maximum: 7.61 ohms/100 m | 2.32 ohms/100 ft
• Mutual Capacitance at Frequency: 4.2 nF/100 m @ 1 kHz
• Nominal Velocity of Propagation (NVP): 80 %
• Operating Frequency, maximum: 500 MHz
• Operating Voltage, maximum: 80 V
• Remote Powering: Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
• Segregation Class: d
• Transfer Impedance: Grade 2

Material Specifications

• Conductor Material: Bare copper
• Insulation Material: Polyolefin
• Jacket Material: Low Smoke Zero Halogen (LSZH)
• Shield (Tape) Material: Polyester/Aluminum shield

Mechanical Specifications

• Pulling Tension, maximum: 11.34 kg

Environmental Specifications

• Installation temperature: 0 °C to +50 °C (+32 °F to +122 °F)
• Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
• Acid Gas Test Method: IEC 60754-2
• EN50575 CPR Cable EuroClass Fire Performance: Dca
• EN50575 CPR Cable EuroClass Smoke Rating: s2
• EN50575 CPR Cable EuroClass Droplets Rating: d2
• EN50575 CPR Cable EuroClass Acidity Rating: a1
• Flame Test Method: IEC 60332-3-24
• Smoke Test Method: IEC 61034-2

Regulatory Compliance/Certifications

• CENELEC: EN 50575 compliant, Declaration of Performance (DoP) available
• ISO 9001:2015: Designed, manufactured and/or distributed under this quality management system
• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
• REACH-SVHC: Compliant
