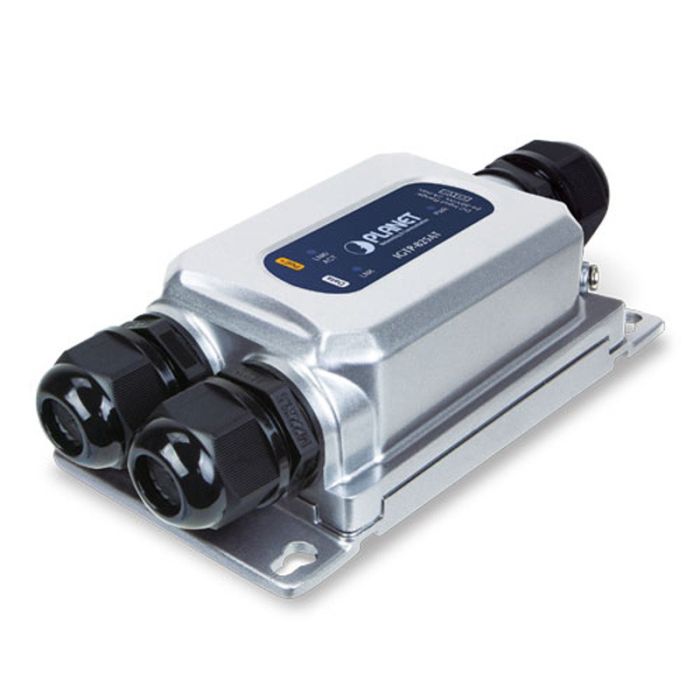

Индустриален медиа конвертор IP67 1GSFP / 1G BASE-T PoE+

Fiber-optic Link Capability Extends Network Deployment Distance

The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-825AT’s SFP slot, supporting a 1000BASE-X SFP module, can extend the distance from 550 m to 120 km. The SFP module (transceiver) is hot-pluggable and hot-swappable. You can plug in and out the transceiver to/from any SFP port without having to power down the Industrial 802.3at PoE+ Media Converter.

Weather-proof RJ45 Ethernet Connector and Shielded Plug

The IGTP-825AT is ideal for installing an extended range of outdoor PoE devices such as outdoor PoE wireless access points, outdoor PoE IP cameras, outdoor PoE IP intercoms and many more. The IGTP-825AT is equipped with 3 waterproof cable glands for direct-attach applications. Moreover, it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Physical Port

• One 10/100/1000BASE-T with IEEE 802.3at PoE+ Gigabit RJ45 port (Data + Power output)
• One 1000BASE-X SFP interface (Data input)
• One 2-pin terminal block for power input. (Power Range: 24 ~ 56V DC)

Power over Ethernet

• 1-port data + power output
• Complies with IEEE 802.3at Power over Ethernet plus PSE
• Compatible with IEEE 802.3at/802.3af powered devices
• Supports total PoE budget up to 30 watts for PoE output port
• Provides DC 55V power over RJ45 Ethernet cable to device with Ethernet port
• Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
• Remote power feeding up to 100m
• Auto detects powered device (PD)

Industrial Case and Installation

• IP67-rated and IK-10 rated aluminum case
• Wall-mount design
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
• Plug and Play installation
