Features

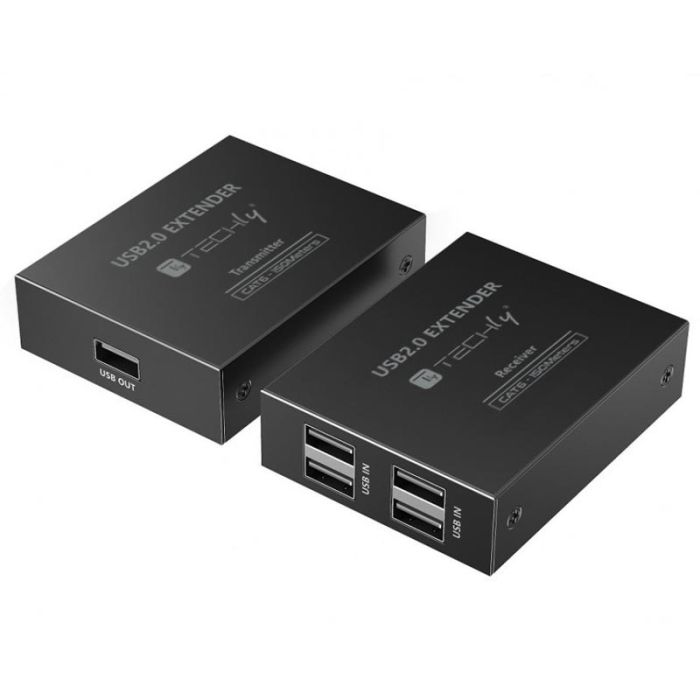

- 4-Port High-Speed USB 2.0 Extender consisting of transmitter and receiver
- Allows connections to be made via a Cat. 5e/6/7 network cable, with a transmission distance of up to 100 m for Cat. 5e and 150 m for Cat. 6 and above with dedicated switch
- Support switch relay through an independent switch that is not connected to the network, the signal transmission distance can be increased by using a Gigabit switch
- Supports hot plugging of USB devices and automatically identifies high speed, full speed and low speed USB
- Supports USB 2.0 devices up to 480Mbps; backwards compatible with USB 1.1/ USB 1.0
- Supports 4 USB 2.0 inputs and 1 USB 2.0 output
- The transmitter is powered by the source device, no additional power is required
Protections
- Lightning protection
- Overload protection
- ESD protection
Technical specifications
- Compatibility: USB 2.0, compatible with USB 1.1, USB 1.0
- Transmission speed: compatible with High-Speed (480Mbps), Full-Speed (12Mbps) and Low-Speed (1.5Mbps)
- Transmission distance: CAT5E≤100m; CAT6/6A/7 ≤ 150 m with dedicated switch
- USB Hot-Plug supported
- Connections: 4 USB-A input ports; 1 USB-A out port
- Standard: Cat.5e/6/6A/7 compliant with EIA/ TIA 568B standard
- Power supply: TX: powered by the source; RX: DC 5V/ 1A
- Consumption: TX ≤2W; RX≤2W
Operating systems
- Windows
- Mac OS
- Linux
- Android
Dimensions
- Width: 76 mm
- Depth: 60 mm
- Height: 21 mm
- Weight: TX 123 g; RX 128 g
Environmental characteristics
- Operating temperature: from -20° ~ 60°C
- Storage temperature: -30° ~ 70°C
- Humidity: 0 ~ 90% (non-condensing)
Certifications
- EC
- FCC
- RoHS
Тегло, кг | 0.284000 |
---|---|
Марка | Techly |
Цвят | Черен |
Брой портове | 4 |
Тип | Удължител |
За пренос на | Данни |
Стандарт | USB 2.0 |
Категория кабел | кат. 5e, кат. 6 |
Вид конектор - КОМПЮТЪРЕН | USB Type-A |
EAN | 4260113566275 |
Дълбочина, см | 0.000000 |
Ширина, см | 0.000000 |
Височина, см | 0.000000 |
