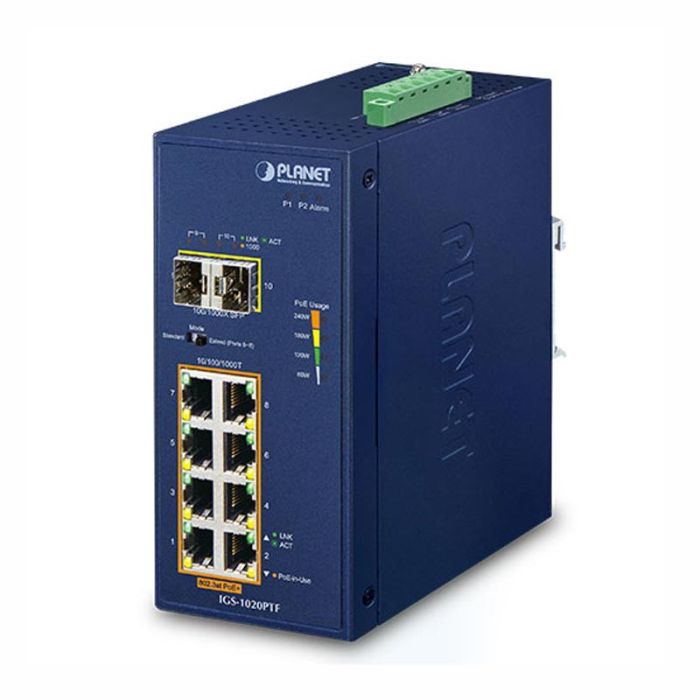

10-портов индустриален PoE суич, 8x1G 802.3at PoE + 2xSFP, IP30

Industrial-grade PoE+ Switch for Building Automation and Security

Suitable for buildings where security is strictly enforced, the IGS-1020PTF, with eight Gigabit Ethernet 802.3at PoE+ in-line power interfaces, can easily build a power centrally controlled for an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 8 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the IGS-1020PTF makes the installation of IP cameras or wireless APs easier and more efficient.

Perfect Integration Solution for IP PoE Camera and NVR System

The IGS-1020PTF provides eight 10/100/1000BASE-T 802.3at PoE+ ports which can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the two 100/1000BASE-X SFP interfaces, the IGS-1020PTF can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the IGS-1020PTF facilitates the recorded video files from the 8 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The IGS-1020PTF undoubtedly brings an ideal secure surveillance system at a lower total cost.

Physical Port

• Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ Injector (Ports 1 to 8)
• Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)

 Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 8 ports of IEEE 802.3af/802.3at devices powered
• 240-watt PoE budget
• Supports PoE power up to 30 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 100 meters

 Industrial Case and Installation

• IP30 metal case
• DIN-rail and wall-mount designs
• 48~54V DC redundant power with reverse polarity protection
• Supports 6KV DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature

 Switching

• Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• 8K MAC address table size
• 20Gbps switch fabric
• 9K jumbo frame
• Hardware-based DIP switch for “Standard” and  “Extend” mode selection; the “Extend” mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps
• Automatic address learning and address aging
