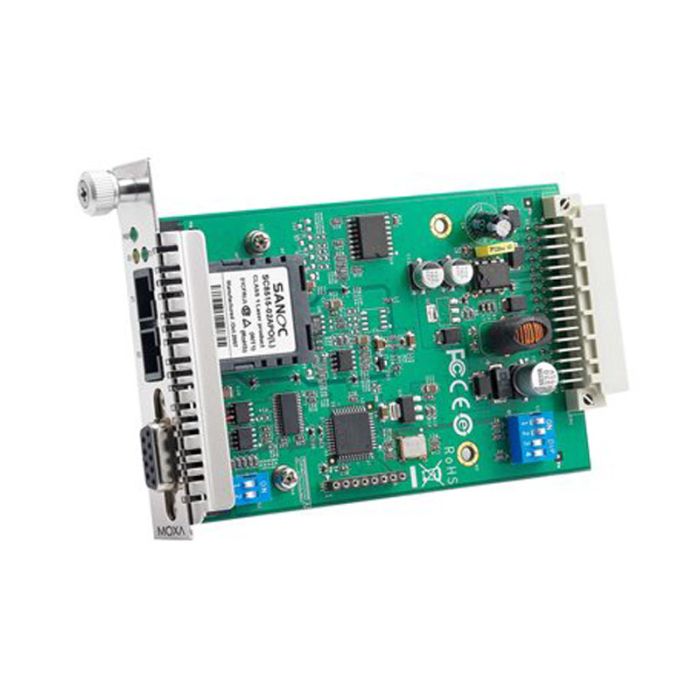

Индустриален конвертор, RS-232/422/485 към оптично влакно, SC конектор, мултимод

Serial Interface

• No. of Ports: 2
• Serial Standards: RS-232, RS-422, RS-485
• Baud rate: 50 bps to 921.6 kbps (supports non-standard baud rates)
• Flow Control: ADDC® (automatic data direction control) for RS-485
• Connector: Multi-mode SC connector
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-485 Data Direction Control: ADDC® (automatic data direction control)
• Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms

Serial Signals

• RS-232: TxD, RxD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 150 mA @ 12 VDC
• Overload Current Protection: Supported
• Power Consumption: 150 mA @ 12 VDC

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 86.8 x 136.5 x 21 mm
• Weight: 105 g

Environmental Limits

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature (package included): -20 to 75°C (-4 to 167°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/24
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC), IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF
• Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3
• Safety: EN 60950-1, IEC 60950-1
• Vibration: IEC 60068-2-6

MTBF

• Time: 514.926 hrs
• Standards: Telcordia (Bellcore), GB
