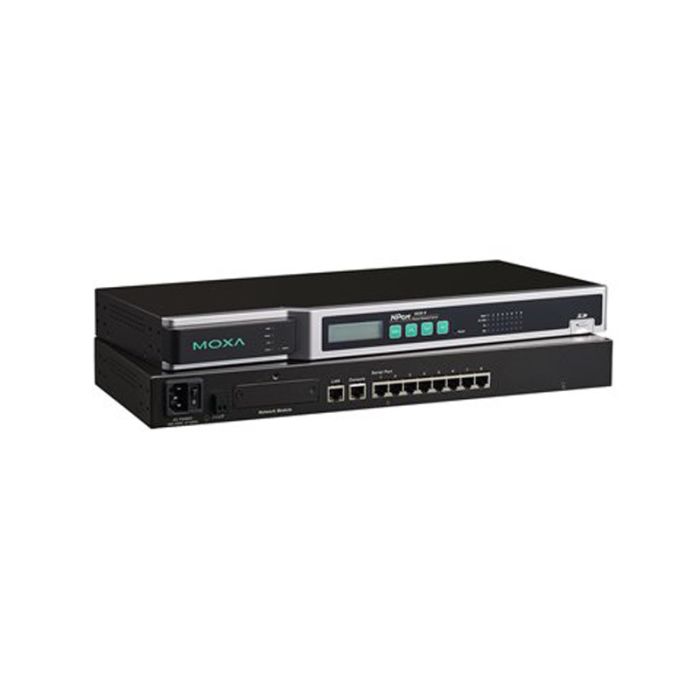

8-портов защитен терминален сървър RS-232/422/485 към Ethernet

Memory

• SD Slot: Up to 32 GB (SD 2.0 compatible)

Input and Output Interface

• Alarm Contact Channels: Resistive load: 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1 Auto MDI/MDI-X connection
• Magnetic Isolation Protection: 1.5 kV (built-in)
• Compatible Modules: NM Series expansion modules for optional extension of RJ45 and fiber Ethernet ports

Ethernet Software Features

• Configuration Options: Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Serial Console, Telnet/SSH Console
• Management: ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, LLDP, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
• Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x and 5.x
• Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
• Android API: Android 3.1.x and later
• MIB: MIB-II
• Time Management: SNTP Client
• Unicast Routing: RIPV1/V2, Static Route

Security Functions

• Authentication: Local database, RADIUS, TACACS+
• Encryption: HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
• Security Protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2

Serial Interface

• Connector: 8-pin RJ45
• No. of Ports: 8
• Serial Standards: RS-232, RS-422, RS-485
• Secure Operation Modes: Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
• Standard Operation Modes: Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
• Baud rate: 50 bps to 921.6 kbps (supports non-standard baud rates)
• Console Port: RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS, DTR/DSR, XON/XOFF
• Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
• RS-485 Data Direction Control: ADDC (automatic data direction control)
• Terminator for RS-485: 120 ohms

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• RS-422: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
• RS-485-2w: Data+, Data-, GND

Power Parameters

• Input Current: 140 mA @ 100 VAC
• Input Voltage: 100 to 240 VAC, 47 to 63 Hz

Reliability

• Automatic Reboot Trigger: Built-in WDT
• Alert Tools: Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): 480 x 195 x 44 mm
• Dimensions (without ears): 440 x 195 x 44 mm
• Weight: 3460 g
• Interactive Interface: LCD panel display, Push buttons for configuration
• Installation: Rack mounting

Environmental Limits

• Operating Temperature: 0 to 55°C
• Storage Temperature (package included): -40 to 75°C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11
• Safety: UL 60950-1
• Traffic Control: NEMA TS2
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-34
• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 636.600 hrs
• Standards: Telcordia (Bellcore) Standard
