Управляем суич L2+ 20 порта 100/1000X SFP + 4 порта Gigabit TP/SFP + 4 порта 10G SFP+

Продуктов код
SGS-5240-20S4C4XR

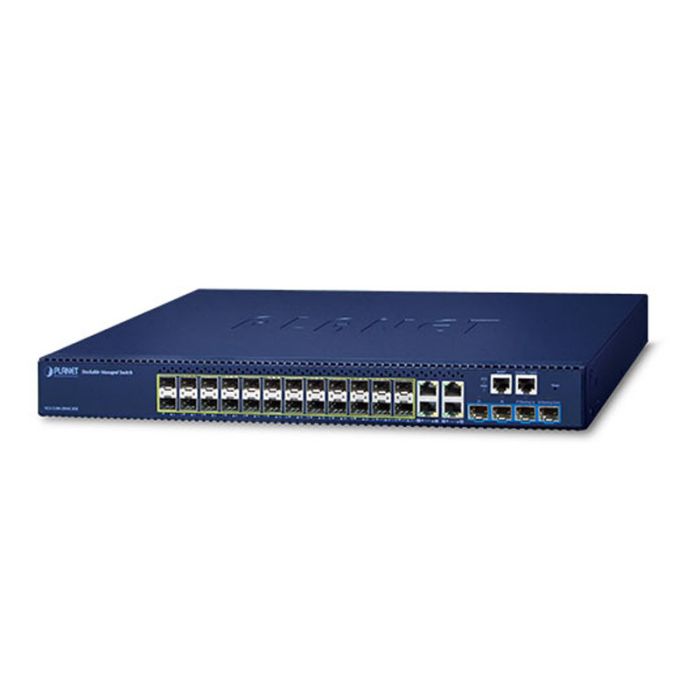

PLANET SGS-5240-20S4C4XR is a Layer 2+ Stackable Managed Gigabit Switch that provides high-density performance, Layer 3 static routing with 10Gbps uplink interfaces delivered in a rugged, strong case.

The administrator can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the 10G network efficiently. Besides, with 128 Gbps switching fabric, the SGS-5240 series can handle extremely large amounts of data in a secure topology linking to backbone or high capacity servers for ISP and enterprise VoIP, video streaming, and multicast applications.

1 654,80 лв. 1 379,00 лв.
1 654,80 лв. 1 379,00 лв.
В наличност

Physical Ports

  • 24 100/1000BASE-X SFP slots
  • 4-Port 10/100/1000BASE-T RJ45 copper interfaces, shared with Port-1 to Port-4
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RJ45 to DB9 console interface for switch basic management and setup
  • One 10/100BASE-TX Management port

Stacking Features

  • IP Stacking: Connects with stack member via Gigabit TP, SFP and 10G SFP+ interfaces, Single IP address management, supporting up to 16 IP units stacked together
  • Hardware Stacking: Virtualized multiple SGS-5240 switch series stacked into one logical device, Connects with stack member via assigned 10G SFP+ interfaces, Single IP address stack management, supporting up to 6 hardware units stacked together, Stacking architecture supports redundant ring mode

IP Routing Features

  • IPv4/IPv6 hardware static routing
  • Routing interface provides per VLAN routing mode

 Layer 2 Features

  • Supports VLAN: IEEE 802.1Q tag-based VLAN, Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported, GVRP for dynamic VLAN management, Protocol-based VLAN, MAC-based VLAN, IP subnet-based VLAN, Voice VLAN
  • Supports Link Aggregation: 802.3ad Link Aggregation Control Protocol (LACP), Cisco ether-channel (static trunk)
  • Supports Spanning Tree Protocol: STP, IEEE 802.1D (Classic Spanning Tree Protocol), RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol), MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN), Supports BPDU & root guard
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to one)
  • Supports G.8032 ERPS (Ethernet Ring Protection Switching)
  • Loop protection to avoid broadcast loops
  • Link Layer Discovery Protocol (LLDP)
  • Compatible with Cisco uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices

 Quality of Service

  • Input and output rate limit per port bandwidth control
  • 8 priority queues on all switch ports: IEEE 802.1p CoS/DSCP/IP Precedence, VLAN ID, ACL, Policy-based ingress and egress QoS

 Multicast

  • Supports IPv4 IGMP snooping v1, v2 and v3
  • Supports IPv6 MLD snooping v1 and v2
  • Querier mode support
  • IPv4 IGMP snooping port filtering
  • IPv6 MLD snooping port filtering
  • MVR (Multicast VLAN Registration)

 Security

  • Authentication: IEEE 802.1x port-based/MAC-based network access authentication, IEEE 802.1x authentication with guest VLAN, Built-in RADIUS client to cooperate with the RADIUS servers, RADIUS/TACACS+ users access authentication, Guest VLAN assigns clients to a restricted VLAN with limited services
  • Access Control List: IP-based Access Control List (ACL), MAC-based Access Control List (ACL), Time-based ACL
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces: Console and Telnet Command Line Interface, HTTP web switch management, SNMP v1 and v2c switch management, SSHv2, SSLv3 and SNMP v3 secure access
  • SNMP Management: Four RMON groups (history, statistics, alarms, and events), SNMP trap for interface Link Up and Link Down notification
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance: Firmware upload/download via HTTP, Reset button for system reboot or reset to factory default, Dual images
  • DHCP Functions: DHCP Relay, DHCP Option 82
  • User Privilege levels control
  • Network Time Protocol (NTP) and SNTP
  • Network Diagnostic: SFP-DDM (Digital Diagnostic Monitor), Cable diagnostic technology provides the mechanism to detect and report potential cabling issues, ICMPv6/ICMPv4 remote ping
  • Syslog remote alarm
  • System Log

Redundant Power System

  • Redundant 100~240V AC and 36-75V DC dual power
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
Допълнителна информация
Тегло, кг0.000000
МаркаPlanet - Тайван
ЦвятСин
Country of ManufactureТайван
Вид Лан Портове10/100/1000 Mb/s RJ45
Брой Лан Портове4
Оптични портовеSFP
Брой Оптични Портове24
Скорост оптични портове1 Gb/s, 10 Gb/s
PoEНЕ
PoE СтандартНяма
Приложение:Commercial
Управление на суичоветеLayer 2+
Form FactorЗа монтаж в шкаф
