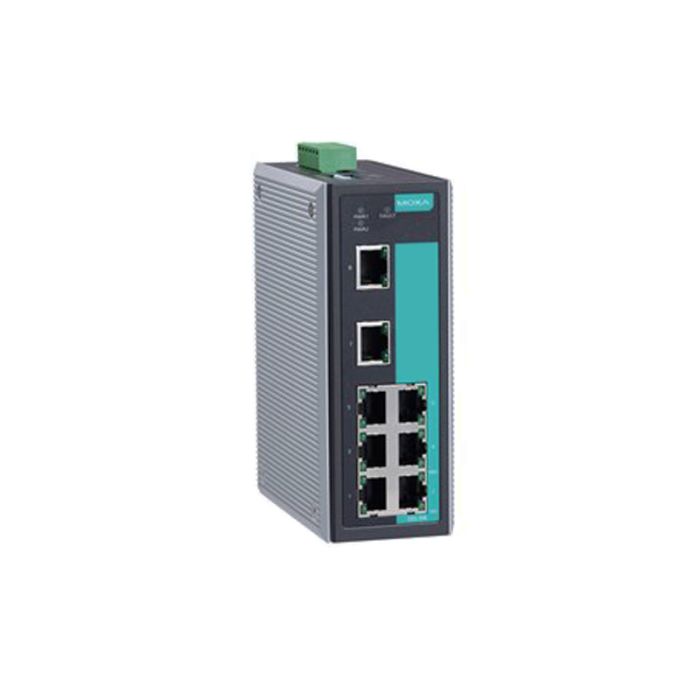

Индустриален суич 8x10/100BaseT, Moxa EDS-308-T

Input/ Output Interface

• Alarm Contact Channels: 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 8
• Auto negotiation speed
• Full/Half duplex mode
• Auto MDI/MDI-X connection
• Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control

DIP Switch Configuration

• Ethernet Interface: Port break alarm

Switch Properties

• MAC Table Size: 2 kbits
• Packet Buffer Size: 768 K
• Processing Type: Store and Forward

Power Parameters

• Input Current: 0.07 A @ 24 VDC
• Connection: 1 removable 6-contact terminal block(s)
• Operating Voltage: 9.6 to 60 VDC
• Input Voltage: Redundant dual inputs 12/24/48 VDC
• Reverse Polarity Protection: Supported
• Overload Current Protection: Supported

Physical Characteristics

• Housing: Metal
• IP Rating: IP30
• Dimensions: 53.6 x 135 x 105 mm
• Weight: 790 g
• Installation: DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• Safety: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 62368 (LVD)
• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 MHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V
• Hazardous Locations: ATEX, Class I Division 2
• Vibration: IEC 60068-2-6
• Shock: IEC 60068-2-27
• Freefall: IEC 60068-2-32
• Maritime: DNV

MTBF

• Time: 2.972.907 hrs
• Standards: MIL-HDBK-217F
