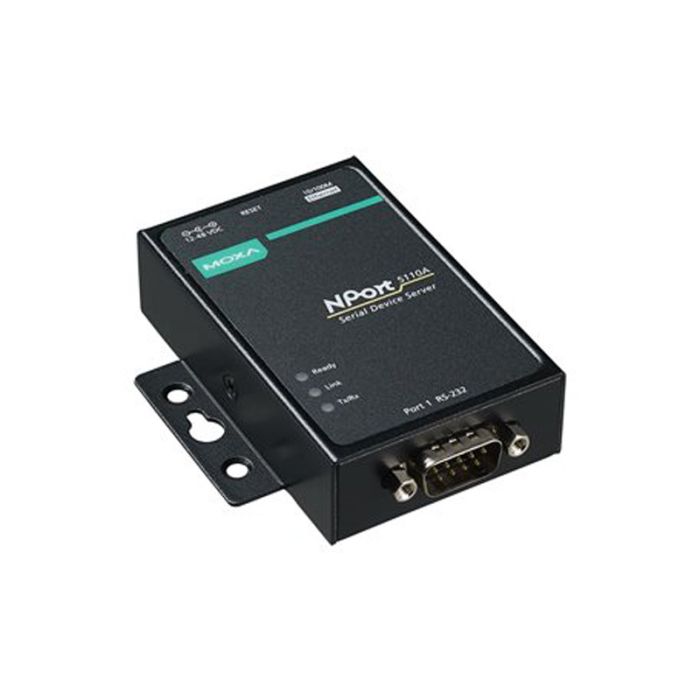

Индустриален сървър за устройства с 1 порт 10/100M към RS-232/DB9

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): 1
• Magnetic Isolation Protection: 1.5 kV (built-in)

Ethernet Software Features

• Configuration Options: Serial Console
• Management: DHCP Client, ARP, BOOTP, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
• Filter: IGMP v1/v2
• Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
• Linux Real TTY Drivers
• Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
• Fixed TTY Drivers: macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
• Android API: Android 3.1.x and later
• MIB: RFC1213, RFC1317

Security Functions

• Authentication: Local database
• Encryption: HTTPS, AES-128, SHA-1, RSA-1024, SHA-256
• Security Protocols: HTTPS (TLS 1.2)

Serial Interface

• Connector: DB9 male
• No. of Ports: 1
• Serial Standards: RS-232
• Operation Modes: Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP
• Baud rate: Supports standard baud rates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

Serial Signals

• RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Power Parameters

• No. of Power Inputs: 1
• Input Current: 82.5 mA @ ;12 VDC
• Input Voltage: 12 to 48 VDC
• Source of Input Power: Power input jack

Reliability

• Automatic Reboot Trigger: Built-in WDT

Physical Characteristics

• Housing: Metal
• Dimensions (with ears): 75.2 x 80 x 22 mm
• Dimensions (without ears): 52 x 80 x 22 mm
• Weight: 340 g
• Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting

Environmental Limits

• Operating Temperature: 0 to 60°C
• Storage Temperature (package included): -40 to 75°C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

• EMC: EN 55032/35
• EMI: CISPR 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11
• Safety: UL 60950-1
• Green Product: RoHS, CRoHS, WEEE

MTBF

• Time: 2.231.530 hrs
• Standards: Telcordia (Bellcore) Standard TR/SR
