Features

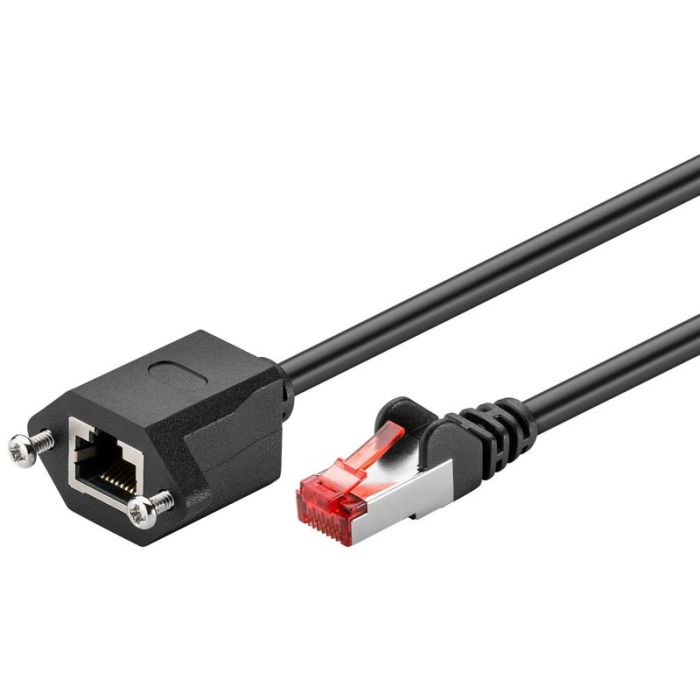

- Prewired, shielded LAN extension cable with RJ45 plugs for connecting network components
- Mounting flange with 25 mm hole spacing for fastening e.g. to a slot bracket, cable duct or enclosure with corresponding cut-out
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses
- High-quality copper-clad aluminium wire (CU) and gold-plated contacts guarantee an excellent, powerful network connection
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
- Bend protection and a sturdy PVC jacket effectively protect the extension cable from breakage
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1
Connections
- Connection, shielding: Yes
- Latch protection: Unilaterally
- Connection, type: RJ45 male (8P8C)
- Connection 2, type: RJ45 female (8P8C)
- Contacting: EIA/TIA-568 B
- Kink protection: Both sides
Cable
- Specification: CAT 6
- Cable length: 0.5 and 1 m
- Shielding class: F/UTP
- Cable type: Round cable
- Cable sheath diameter (approx.): 6 mm
- Inner conductor material: CU (copper)
- AWG: 26/7 (stranded)
- Number of shieldings: 1 x
- Type 1, shielding: foil (aluminium)
- Material cable sheath: PVC
Signal transmission
- max. bandwidth: 250 MHz
General
- Color: Black
- Markings: WEEE, CE
- Special feature: Length indication on connector
- Operating temperature from: -20 °C
- Operating temperature up to: 60 °C
- Packaging type: Bulk
| Тегло, кг | 0.000000 |
|---|---|
| Марка | Goobay |
| Цвят | Черен |
| Екраниран | ДА |
| Екранировка | F/UTP |
| Категория кабел | кат. 6 |
| Вид конектор - КОМПЮТЪРЕН | RJ45 |
| AWG-size | 26 |
| Jacket type | PVC |
| Дължина на кабела | 0.5 м, 1 м |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
