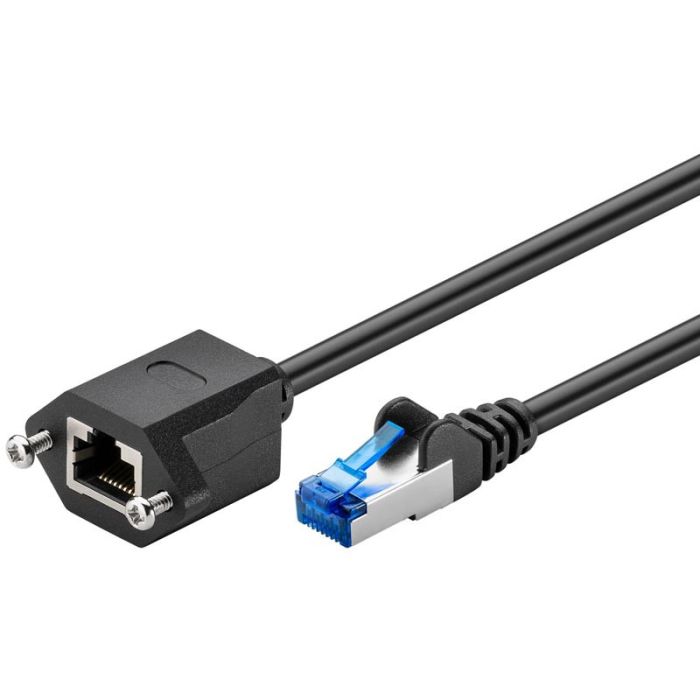

Удължителен меден пач кабел, категория 6а, S/FTP (PiMF), черен

Features

• Double-shielded LAN cable extension with RJ45 plugs for connecting network components
• Mounting flange with 25 mm hole spacing for fastening e.g. to a slot bracket, cable duct or enclosure with corresponding cut-out
• High-quality copper conductor (CU) and gold-plated contact surfaces for an excellent, high-performance network connection
• S/FTP overall shielding: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shielding for the cable sheath
• Bend protection and a sturdy jacket effectively protect the extension cable from breakage
• Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection
• Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1, suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

Connections

• Connection, contact material: Gold-plated 3µm
• Connection, shielding: Yes
• Latch protection: Unilaterally
• Connection, type: RJ45 male (8P8C)
• Connection 2, type: RJ45 female (8P8C)
• Contacting: EIA/TIA-568 B
• Kink protection: Both sides

Cable

• Specification: CAT 6A
• Cable length: 2 m
• Shielding class: S/FTP (PiMF)
• Cable type: Round cable
• Cable sheath diameter (approx.): 5.9 mm
• Inner conductor material: CU (copper)
• AWG: 27/7 (stranded)
• Number of shieldings: 2 x
• Type 1, shielding: foil (alu) PiMF
• Type 2, shielding: braid (alu) overall shield
• Material cable sheath: LSZH

Signal transmission

• max. bandwidth: 500 MHz

General

• Outer sheath material: LSZH
• Color: Black
• Markings: WEEE, CE
• Special feature: Length indication on connector
• Operating temperature from: -20 °C
• Operating temperature up to: 75 °C
• Packaging type: Bulk
