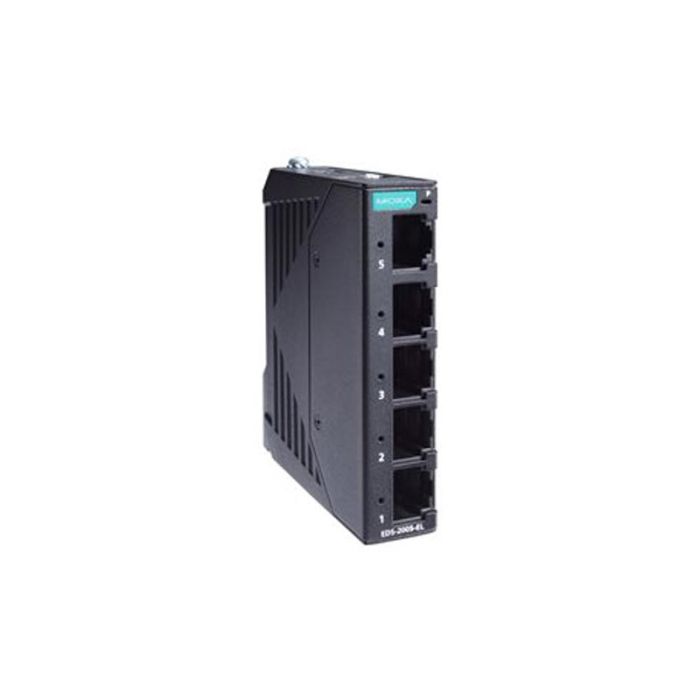

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.
The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C.
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 5, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
- Standards: IEEE 802.3 for 10BaseT, IEEE 802.1p for Class of Service, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control
Switch Properties
- Processing Type: Store and Forward
- MAC Table Size: 2 K
- Packet Buffer Size: 768 kbits
DIP Switch Configuration
- Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)
Power Parameters
- Connection: 1 removable 2-contact terminal block(s)
- Input Current: 0.045 A @ 24 VDC
- Input Voltage: 12/24/48 VDC
- Operating Voltage: 9.6 to 60 VDC
- Overload Current Protection: Supported
- Reverse Polarity Protection: Supported
Physical Characteristics
- Dimensions: 18 x 81 x 65 mm
- Installation: DIN-rail mounting, Wall mounting (with optional kit)
- Weight: 105 g
- Housing: Metal
Environmental Limits
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Operating Temperature: -10 to 60°C
- Storage Temperature (package included): -40 to 85°C
Standards and Certifications
- Safety: UL 61010-2-201, EN 62368-1 (LVD)
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- EMI: CISPR 22, 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
- Freefall: IEC 60068-2-32
MTBF
- Time: 5.258.930 hrs
- Standards: Telcordia (Bellcore), GB
Тегло, кг | 0.000000 |
---|---|
Марка | Moxa |
Цвят | Черен |
Country of Manufacture | Тайван |
Брой портове | 5 |
Form Factor | DIN Rail |
Вид Суичове | Неуправляеми суичове |
Вид конектор - КОМПЮТЪРЕН | RJ45 |
Приложение: | Industrial |
Дълбочина, см | 0.000000 |
Ширина, см | 0.000000 |
Височина, см | 0.000000 |
