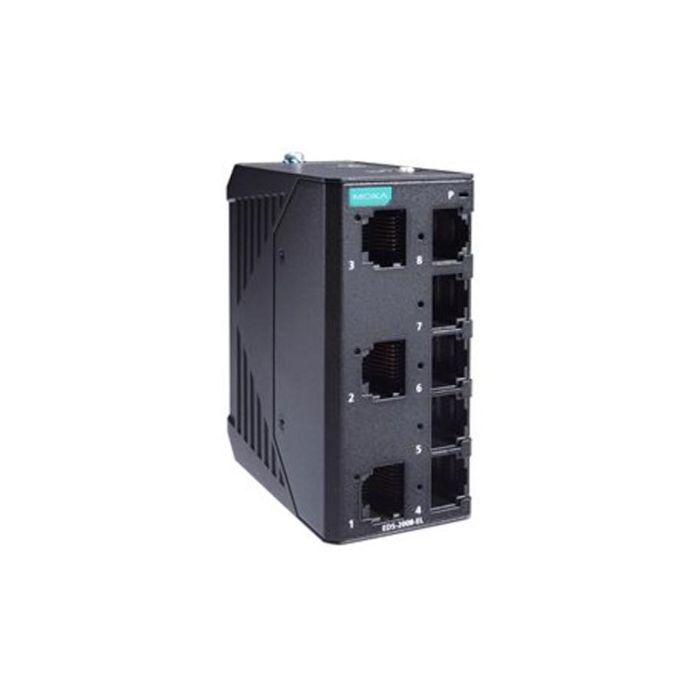

8-портов неуправляем суич Fast Ethernet, метален корпус

The EDS-2008-EL series of industrial Ethernet switches have up to eight 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. To provide greater versatility for use with applications from different industries, the EDS-2008-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2008-EL Series has a rugged metal housing to ensure suitability for use in industrial environments and fiber connections (Multi-mode SC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capability. In addition to its compact size, the EDS-2008-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-EL Series has a standard operating temperature range of -10 to 60°C.

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector): EDS-2008-EL: 8, EDS-2008-EL-M-ST: 7, EDS-2008-EL-M-SC: 7, Full/Half duplex mode, Auto MDI/MDI-X connection, Auto negotiation speed
• 100BaseFX Ports (multi-mode SC connector): EDS-2008-EL-M-SC: 1
• 100BaseFX Ports (multi-mode ST connector): EDS-2008-EL-M-ST: 1
• Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.1p for Class of Service

Switch Properties

• Processing Type: Store and Forward
• MAC Table Size: 2 K
• Packet Buffer Size: 768 kbits

DIP Switch Configuration

• Ethernet Interface: Quality of Service (QoS), Broadcast Storm Protection (BSP)

Power Parameters

• Connection: 1 removable 2-contact terminal block(s)
• Input Current: EDS-2008-EL: 0.067A @ 24 VDC, EDS-2008-EL-M-ST/EDS-2008-EL-M-SC: 0.105A @ 24 VDC
• Input Voltage: 12/24/48 VDC
• Operating Voltage: 9.6 to 60 VDC
• Overload Current Protection: Supported
• Reverse Polarity Protection: Supported

Physical Characteristics

• Installation: DIN-rail mounting, Wall mounting (with optional kit)
• Weight: 163 g
• Housing: Metal
• Dimensions: 36 x 81 x 65 mm

Environmental Limits

• Ambient Relative Humidity: 5 to 95% (non-condensing)
• Operating Temperature: -10 to 60°C
• Storage Temperature (package included): -40 to 85°C

Standards and Certifications

• Safety: UL 61010-2-201, EN 62368-1 (LVD)
• EMC: EN 55032/35, EN 61000-6-2/-6-4
• EMI: CISPR 22, 32, FCC Part 15B Class A
• EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32

MTBF

• Time: 3.779.420 hrs
• Standards: Telcordia (Bellcore), GB
