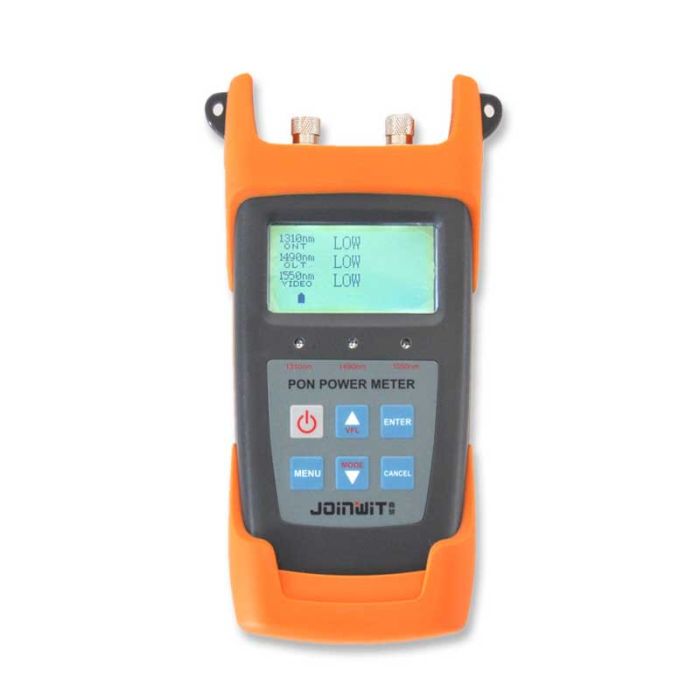

PON Пауър метър JW3213

It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
Providing simultaneous measurement for all three wavelengths on thefiber (1490nm, 1550nm,1310nm )
Used in Burst mode measurement of 1310nm upstream.
Use the software connect with PC, setting the threshold, data transfer,and calibration the wavelength.
Lithium battery, AA alkaline, AC adapter, NI-MH battery for power supply

SPECIFICATIONS OF PON METER

1310 upstream measurement

Pass Zone(nm) - 1260nm～1360nm
MeasurementRange(dBm) - -35dBm～+10dBm
Output power(max) - 15dBm
Isolation@1490/1550(dB) - >40dB
Burst mode measurement error - <±0.5dB

1490 downstream measurement

Pass Zone(nm) - 1470nm～1505nm
MeasurementRange(dBm) - -35dBm～+10dBm
Output power(max) - 15dBm
Isolation@1310/1550(dB) - >40dB

1550 downstream measurement

Pass Zone(nm) - 1535nm～1570nm
MeasurementRange(dBm) - -35dBm～+10dBm
Output power(max) - 15dBm
Isolation@（1310/1490nm）- >40dB

Measurement Accuracy

Connatural uncertainty(dB) - ±0.5dB
Linearity(dB) - ±0.1dB
Passing through insertion Loss(dB) - <1.5dB

General Information

Detector Type - InGaAs
Optical Connector - FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type - SM 9/125um
Measurement Unit - dB/dBm/xW
Resolution (dB) - 0.01dB
Operation Voltage(V) - DC 3.3V～5.5V
Power Supply - 3pc1.5V battery
Continuously Operation time (h) - 90h
Operation Temperature(℃) - -10℃～60℃
Storage temperature(℃) - -25℃～70℃
Dimension - 23.5*16*8cm
Weight - 0.65kg
