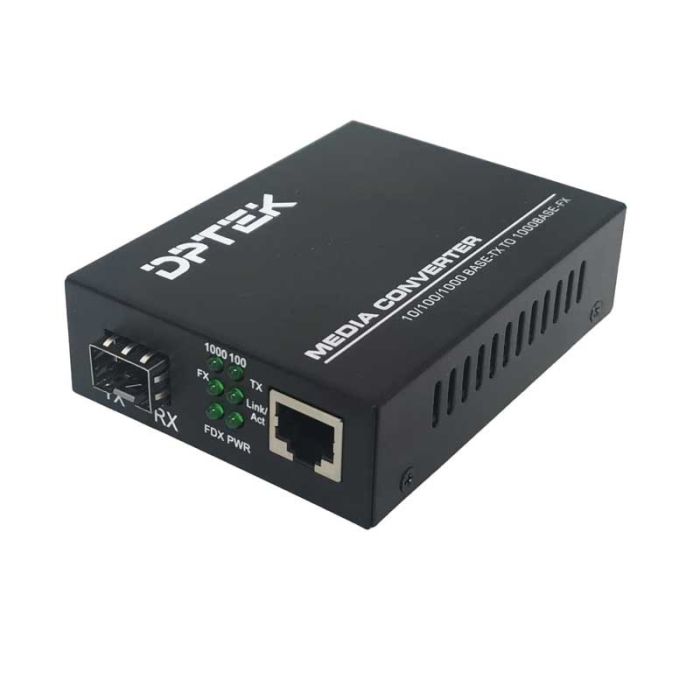

The DK-MC-1G-SFP media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -25°C ~ +70°C wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.
Main Features
- Input voltage: DC5V
- Operating temperature: -25°C to +70°C
- Cooling mode: no fan design
- Forwarding mode: store and forward
Power interface: DC
LED indicators: PWR, Link/ACT LED
Optical port: SFP plug-in module
Network ports: RJ45 port
Optical wavelength: Determined by the SFP module
Transmission distance: Determined by the SFP module
Cable type and distance
Twisted-pair: 0-100m（CAT5e, CAT6）
Single-mode fiber: 20/40/60/80/100KM
Multimode optical fiber: 550m
Network topology
Star topology: Support
Bus topology: Support
Tree topology: Support
Electrical specifications
Input voltage: DC5V
Total power consumption: Total power<4W
Layer 2 switching
Switching capacity: 6G
Packet forwarding rate: 4.46Mpps
MAC address table: 2K
Buffer: 1M
Forwarding delay: <4us
MDX/MIDX: Support
Environment
Operating temperature: -25°C~+70°C
Storage temperature: -25°C~+70°C
Relative humidity: 5%~95%（non-condensing）
MTBF 100,000 hours
Mechanical Dimensions
Product size: 94x70x26mm
Weight: 0.2kg/pc
| Тегло, кг | 0.250000 |
|---|---|
| Марка | DPTEK |
| Country of Manufacture | Китай |
| EAN | 6977182780270 |
| Дълбочина, см | 6.1 |
| Ширина, см | 12.2 |
| Височина, см | 8.7 |
