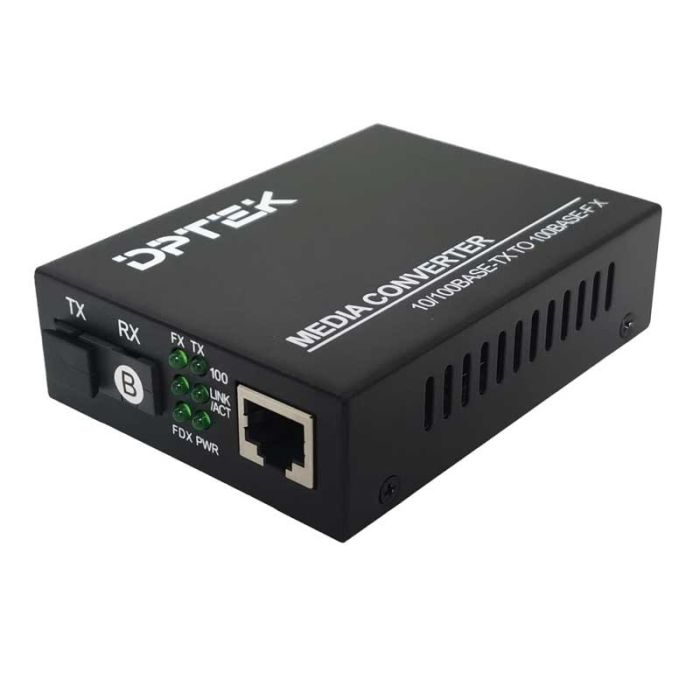

The DK-MC0135 series media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -20°C ~ +70°C wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.
Main Features
- Input voltage: DC5V
- Operating temperature: -20°C to +70°C
- Cooling mode: no fan design
- Forwarding mode: store and forward
Provider Mode Ports
Fixed port: 1*100 Base-X, 1*10/100 Base-T
Power interface: DC port
LED Indicators: PWR, Link/ACT LED
Cable type&Transmission distance
Twisted-pair: 0-100m （Cat. 5e, Cat. 6）
Single mode optical fiber: 20 km
Electrical Specifications
Input voltage: DC5V
Total Power consumption: Total power<4W
Environment
Operating temperature -20°C~+70°C
Storage temperature -20°C~+70°C
Relative humidity 5%~95% non-condensing
Thermal methods Fanless design, natural heat dissipation
MTBF 100,000 hours
Mechanical Dimensions
Product size 93x71x27mm
Installation Method Desktop
Weight 0.15KG*2
Certification
Certification CE/FCC/RoHS
Accessories
Accessories Device, manual, power adapter(EU/US/UK/AU plug optional)
| Тегло, кг | 0.250000 |
|---|---|
| Марка | DPTEK |
| Country of Manufacture | Китай |
| EAN | 6977182780119 |
| Дълбочина, см | 6.1 |
| Ширина, см | 12.2 |
| Височина, см | 8.7 |
