Technical product properties
• Cat. 5e
• SF/UTP cable with AWG26/7
• Sheath material made of halogen-free LSZH
• Fire protection: flame-retardant, halogen-free, low smoke

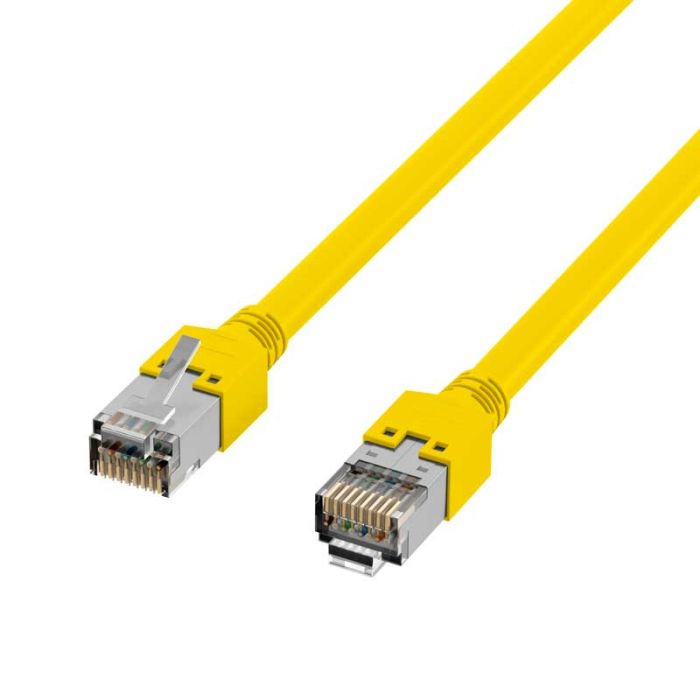

• Plug connection: RJ45 to RJ45
• Has gold-plated contacts
The jacket of the shielded patch cable is made of halogen-free LSZH material. In addition, the cable offers the option of power supply via PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt.
The assignment of the TM11 plugs is according to TIA/EIA 568B and is 1: 1.
The Ethernet cable has a conductor material made of copper and is ideal for applications in structured building cabling, industrial Ethernet and data centers. A frequency range of up to 100 MHz is achieved.
| Тегло, кг | 0.000000 |
|---|---|
| Марка | EFB Elektronik |
| Цвят | Жълт |
| Country of Manufacture | Китай |
| Екраниран | ДА |
| Екранировка | SF/UTP |
| Категория кабел | кат. 5e |
| AWG-size | 27 |
| Jacket type | LSZH |
| Дълбочина, см | 0.000000 |
| Ширина, см | 0.000000 |
| Височина, см | 0.000000 |
