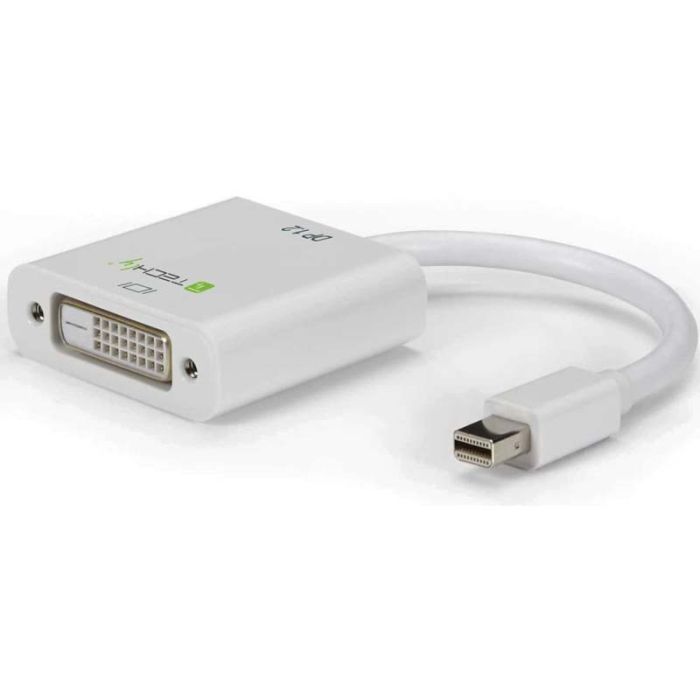

Адаптер Mini DP към DVI-D 24+1, M-F, бял

Connect a source mini-DisplayPort (Thunderbolt) to a DVI monitor cable
Provides a single high-quality signal to a DVI monitor - ideal for computer MAC
Fully shielded to reduce electromagnetic interference (EMI) and other sources of interference
Supports DisplayPort 1.2 signal
Molded PVC boot

Contacts

    (1) Mini-DisplayPort 20-pin male (Thunderbolt)
    (1) DVI-D Dual Link
    Molded PVC
    Shielded

Signal IN / OUT

    Input video signal: Mini DisplayPort
    Maximum range Single Link: 4K x 2K
    Video Output: DVI-D Dual Link
    Input Connector: Mini DisplayPort Male 20pin
    Output Connector Type: DVI 24 + 1 female

Operating Frequency

    Vertical Frequency Range: 50 / 60Hz
    Video amplifier bandwidth of 1.62Gbps / 2.7Gbps

Resolutions (HDTV)

    1920x1080 @ 60Hz
    Does not support 3D mode

Dimensions

    Length 43 mm
    Width 43 mm
    Height 15 mm
    Cable length 15 cm

Environmental Characteristics

    Operating Temperature: 0 ° C to + 70 ° C
    Operating humidity 10% to 85% (non-condensing)
    Storage temperature -10 ° C to + 80 ° C
    Storage Humidity 5% to 90% (non-condensing)

Power Requirements

    No need for external power supply
    Power Consumption (Max) 1W

Standards and Certifications

    DisplayPort 1.2
    EC
    RoHS
    WEEE

Package Contents

    Adapter Mini-DisplayPort (Thunderbolt) to DVI
    Instruction Manual
