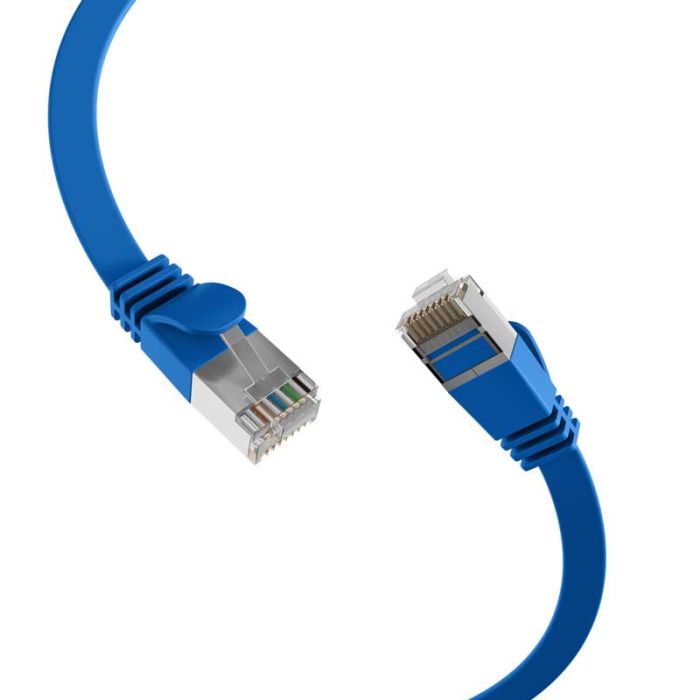

RJ45 Плоска пач корда екранирана U/FTP, Kатегория 6а, синя

рейтинг:

Продуктов код

K5545BLx

The pair-shielded Cat. 6A RJ45 flat patch cable ensures excellent performance for 10 Gigabit Ethernet applications.

The flat patch cable impresses with its flat construction and is with 2.2 mm height ideal for laying e.g. behind ledges or under a carpet.

The cast grommet captivates with its slim design and thus simplifies the plugging process in confined spaces.

4,20 лв. 3,50 лв.

Цена от

4,20 лв. 3,50 лв.

Няма наличност

Category: 6A (TIA)
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
Connector type: RJ45 short version
Contacts: Gold plated
Pin assignment: 1:1
Allocation: acc. TIA/EIA 568B
Type: Shielded
Anti-kink sleeve: Moulded
Color anti-kink sleeve: Black
Locking lever: Yes
Mating cycles: ≥750
Bending radius: >20 mm
Conductive shield: Selected shield contact
Cable structure: U/FTP
Cable construction: 4x2
AWG-size/strands per core: 30/7
Conductor Material: Copper
Silicone-free: Yes
Jacket material: PVC
Color outer sheath: Blue
Outer diameter of the cable: 7.0*2.2 mm
Temperature range: -20 – 55 °C
NVP value: 76 %
Impedance: 100 ±15 Ω
Conductor resistance DC: 376 Ω/km
Loop resistance: 752 Ω/km
Resistance unbalance: <4 %
Insulation resistance: 100 MΩ
Test voltage: 1000 (V DC, 1min) core/core und core/screen
POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
Bandwidth: 500MHz
Connector: IEC 60603-7-51
